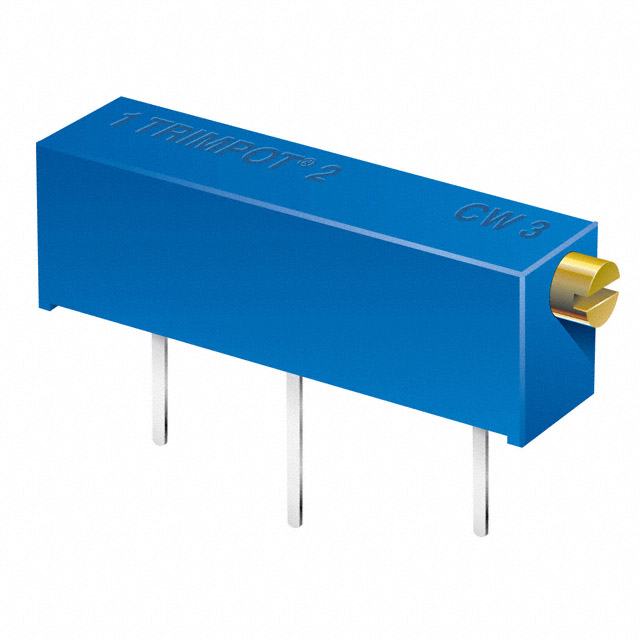

3005P-1-501

Active

Bourns Inc.

TRIMMER 500 OHM 1W PC PIN SIDE

Search across all available documentation for this part.

Active

Bourns Inc.

TRIMMER 500 OHM 1W PC PIN SIDE

Technical Specifications

Parameters and characteristics for this part

Part	Resistance	Power (Watts)	Termination Style	Tolerance	Temperature Coefficient	Resistive Material	Mounting Type	Adjustment Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Number of Turns
Bourns Inc. 3005P-1-203	20 kOhms	1 W	PC Pins	10 %	50 ppm/°C	Wirewound	Through Hole	Side Adjustment	7.87 mm	4.06 mm	0.16 in	0.31 in	20
Bourns Inc. 3005P-1-500	50 Ohms	1 W	PC Pins	10 %	50 ppm/°C	Wirewound	Through Hole	Side Adjustment	7.87 mm	4.06 mm	0.16 in	0.31 in	20
Bourns Inc. 3005P-1-503	50 kOhms	1 W	PC Pins	10 %	50 ppm/°C	Wirewound	Through Hole	Side Adjustment	7.87 mm	4.06 mm	0.16 in	0.31 in	20
Bourns Inc. 3005P-1-101	100 Ohms	1 W	PC Pins	10 %	50 ppm/°C	Wirewound	Through Hole	Side Adjustment	7.87 mm	4.06 mm	0.16 in	0.31 in	20
Bourns Inc. 3005P-1-501	500 Ohms	1 W	PC Pins	10 %	50 ppm/°C	Wirewound	Through Hole	Side Adjustment	7.87 mm	4.06 mm	0.16 in	0.31 in	20

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

500 Ohms 1W PC Pins Through Hole Trimmer Potentiometer Wirewound 20.0 Turn Side Adjustment
