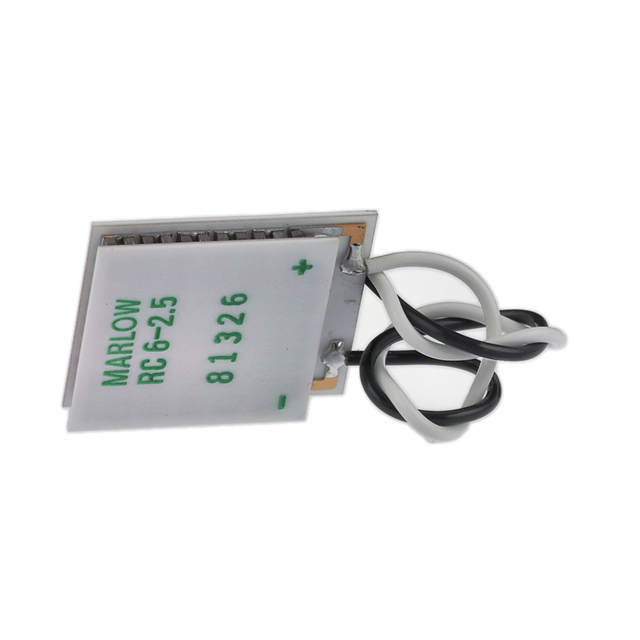

RC6-2.5-01

Active

Marlow Industries, Inc.

TEM 23.5X23.5X3.94MM

Search across all available documentation for this part.

Active

Marlow Industries, Inc.

TEM 23.5X23.5X3.94MM

Technical Specifications

Parameters and characteristics for this part

Part	Features	Delta Tmax @ Th	Size / Dimension [x]	Size / Dimension [y]	Operating Temperature	Height [z]	Resistance	Current - Max [Max]	Qmax @ Th	Number of Stages	Voltage - Max [Max]
Marlow Industries, Inc. RC6-2.5-01	Lead Wires	65 °C	27.9 mm	23.5 mm	130 °C	4.04 mm	2.8 Ohms	2.5 A	13 W	1	8.2 V
Marlow Industries, Inc. RC6-2.5-01LS	Lapped Lead Wires Sealed	65 °C	27.9 mm	23.5 mm	130 °C	3.94 mm	2.8 Ohms	2.5 A	13 W	1	8.2 V
Marlow Industries, Inc. RC6-2.5-01S	Lead Wires Sealed	65 °C	27.9 mm	23.5 mm	130 °C	4.04 mm	2.8 Ohms	2.5 A	13 W	1	8.2 V
Marlow Industries, Inc. RC6-2.5-01L	Lapped Lead Wires	65 °C	27.9 mm	23.5 mm	130 °C	3.94 mm	2.8 Ohms	2.5 A	13 W	1	8.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Peltier Module 13.0W @ 27°C 2.5 A 130°C
