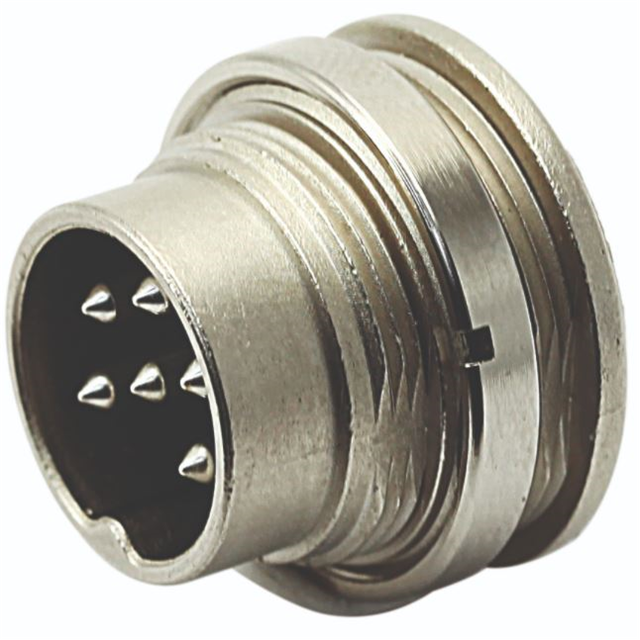

T 3652 100

Active

Amphenol Tuchel Industrial

CONN RCPT MALE 14P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN RCPT MALE 14P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Part	Ingress Protection	Voltage Rating	Connector Type	Shell Finish	Shell Material	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Color	Shielding	Primary Material	Shell Size - Insert	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Feature
Amphenol Tuchel Industrial T 3652 100	IP40	60 VDC	Male Pins Receptacle	Nickel	Die Cast	3 A	14	Gold	Silver	Shielded	Metal	M16-14	Keyed	100 °C	-40 °C
Amphenol Tuchel Industrial T 3652 009	IP40	60 VDC	Male Pins Receptacle	Nickel	Die Cast	3 A	14	Silver	Silver	Shielded	Metal	M16-14	Keyed	100 °C	-40 °C	Bulkhead - Rear Side Nut
Amphenol Tuchel Industrial T 3652 000	IP40	60 VDC	Male Pins Receptacle	Nickel	Die Cast	3 A	14	Gold	Silver	Shielded	Metal	M16-14	Keyed	100 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	105	$ 14.26

General part information

14 Position Circular Connector Receptacle, Male Pins Solder Cup
