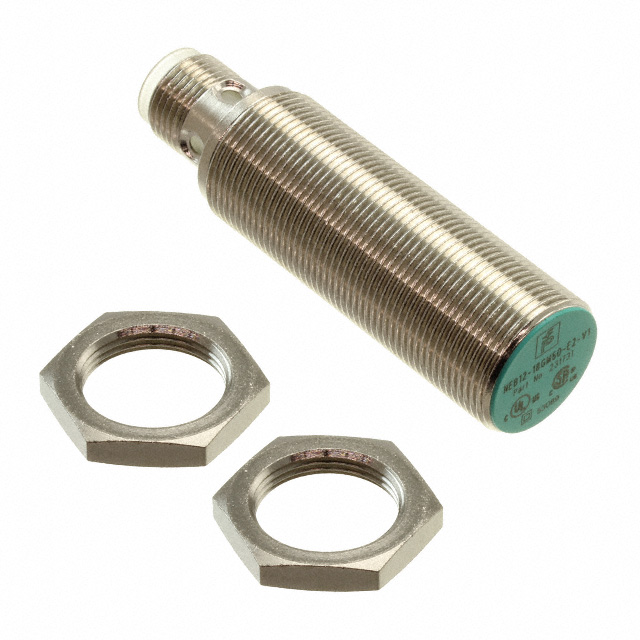

NEB12-18GM50-E2-V1
ActivePEPPERL+FUCHS
INDUCTIVE PROXIMITY SENSOR, M12, 12 MM, PNP, 10 VDC TO 30 VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NEB12-18GM50-E2-V1 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | PNP-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M18 |
| Sensing Distance | 0.472 in |
| Sensing Distance | 12 mm |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NEB12 Series
INDUCTIVE PROXIMITY SENSOR, M12, 12 MM, PNP, 10 VDC TO 30 VDC
