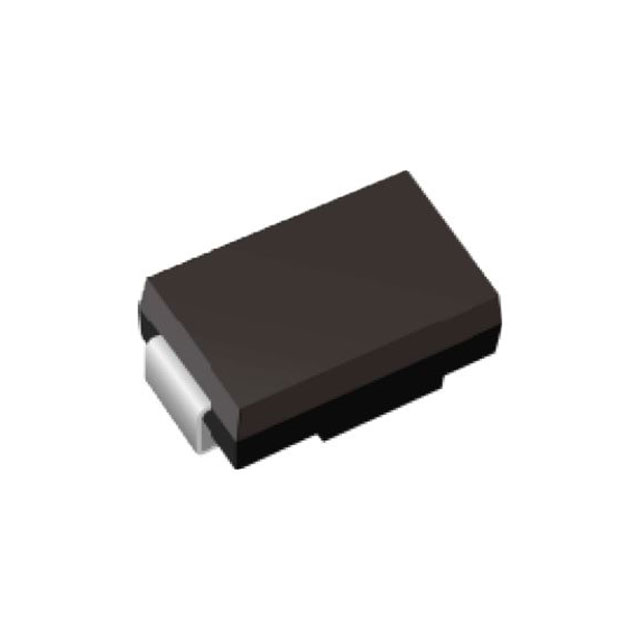

US1D_R1_00001

Active

Panjit International Inc.

SMA, ULTRA

Search across all available documentation for this part.

Active

Panjit International Inc.

SMA, ULTRA

Technical Specifications

Parameters and characteristics for this part

Specification	US1D_R1_00001

Capacitance @ Vr, F	17 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	1 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-55 °C
Package / Case	DO-214AC, SMA
Reverse Recovery Time (trr)	50 ns
Speed	200 mA, 500 ns
Supplier Device Package	DO-214AC (SMA)
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	200 V
Voltage - Forward (Vf) (Max) @ If	1 V

Part	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Supplier Device Package	Capacitance @ Vr, F	Voltage - DC Reverse (Vr) (Max) [Max]	Current - Average Rectified (Io)	Mounting Type	Reverse Recovery Time (trr)	Technology	Voltage - Forward (Vf) (Max) @ If	Speed	Package / Case
Panjit International Inc. US1D_R1_00001	1 µA	150 °C	-55 °C	DO-214AC (SMA)	17 pF	200 V	1 A	Surface Mount	50 ns	Standard	1 V	200 mA 500 ns	DO-214AC SMA
Panjit International Inc. US1DAFC_R1_00001	1 µA	150 °C	-55 °C		20 pF	200 V	1 A	Surface Mount	50 ns	Standard	1 V	200 mA 500 ns	DO-221AC SMA Flat Leads

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Diode 200 V 1A Surface Mount DO-214AC (SMA)
