MA01R120VANBR200
ActiveJAE Electronics

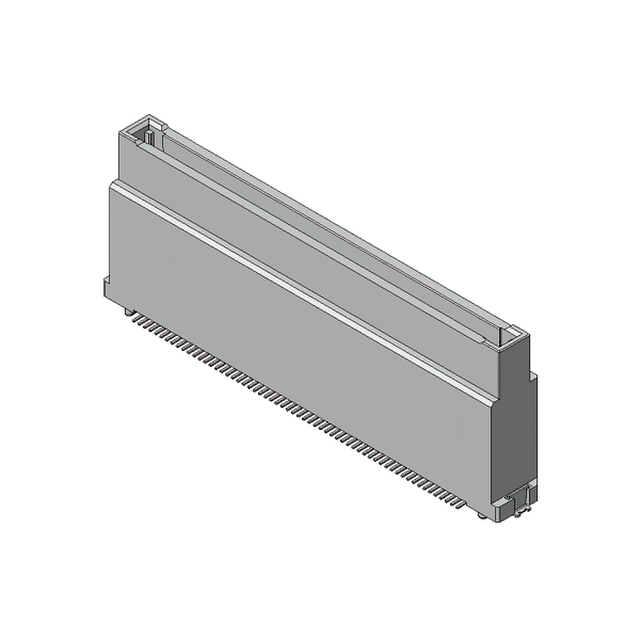

CONN RIGID SIDE STR 120 POS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA01R120VANBR200
ActiveJAE Electronics
CONN RIGID SIDE STR 120 POS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA01R120VANBR200 |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 0.654 in |
| Height Above Board | 16.6 mm |
| Mated Stacking Heights | 24 mm, 30 mm, 18 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Pitch [x] | 0.64 mm |
| Pitch [x] | 0.025 in |
MA01R Series
| Part | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch [x] | Pitch [x] | Height Above Board | Height Above Board | Mounting Type | Number of Rows | Connector Type | Contact Finish | Features | Mated Stacking Heights |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | 90 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 6.6 mm | 0.26 " | Surface Mount Right Angle | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide | |
JAE Electronics | 80 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 6.6 mm | 0.26 " | Surface Mount | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide | 14 mm |
JAE Electronics | 60 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 8.6 mm | 0.339 in | Surface Mount | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide Solder Retention | 10 mm 16 mm 22 mm |
JAE Electronics | 100 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 6.6 mm | 0.26 " | Surface Mount Right Angle | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide | |
JAE Electronics | 80 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 6.6 mm | 0.26 " | Surface Mount Right Angle | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide | |
JAE Electronics | 100 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 8.6 mm | 0.339 in | Surface Mount | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide Solder Retention | 10 mm 16 mm 22 mm |
JAE Electronics | 120 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 16.6 mm | 0.654 in | Surface Mount | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide Solder Retention | 18 mm 24 mm 30 mm |
JAE Electronics | 40 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 16.6 mm | 0.654 in | Surface Mount | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide Solder Retention | 18 mm 24 mm 30 mm |
JAE Electronics | 100 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 6.6 mm | 0.26 " | Surface Mount | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide | 14 mm |
JAE Electronics | 80 | 4 Áin | 0.1 Ám | 0.64 mm | 0.025 in | 16.6 mm | 0.654 in | Surface Mount | 2 | Receptacle Outer Shroud Contacts | Gold | Board Guide Solder Retention | 18 mm 24 mm 30 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 8.24 | |
| 10 | $ 7.42 | |||
| 25 | $ 6.99 | |||
| 50 | $ 6.81 | |||
| 100 | $ 6.63 | |||
| Digi-Reel® | 1 | $ 8.24 | ||
| 10 | $ 7.42 | |||
| 25 | $ 6.99 | |||
| 50 | $ 6.81 | |||
| 100 | $ 6.63 | |||
| Tape & Reel (TR) | 200 | $ 6.63 | ||
| 400 | $ 5.91 | |||
| 600 | $ 5.55 | |||
| 1000 | $ 4.91 | |||
| 2000 | $ 4.77 | |||
Description
General part information
MA01R Series
120 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
