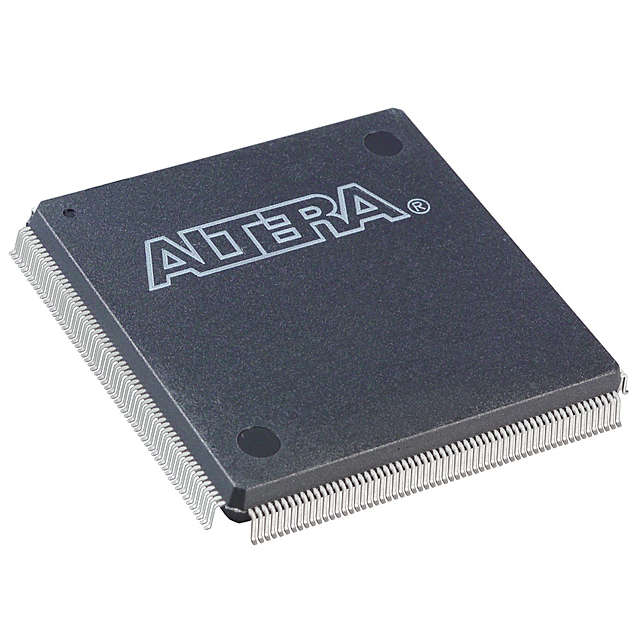

EPF6016QC240-3N

Obsolete

Altera

IC FPGA 199 I/O 240QFP

Search across all available documentation for this part.

Obsolete

Altera

IC FPGA 199 I/O 240QFP

Technical Specifications

Parameters and characteristics for this part

Specification	EPF6016QC240-3N

Mounting Type	Surface Mount
Number of Gates [custom]	16000
Number of I/O	199
Number of LABs/CLBs	132
Number of Logic Elements/Cells	1320
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Package / Case	240-BFQFP
Supplier Device Package	240-PQFP (32x32)
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Number of LABs/CLBs	Number of I/O	Number of Logic Elements/Cells	Number of Gates [custom]	Package / Case	Supplier Device Package	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type
Altera EPF6016ATC144-3N	132	117 I/O	1320	16000	144-LQFP	144-TQFP (20x20)	3.6 V	3 V	0 °C	85 °C	Surface Mount
Altera EPF6016BC256-3N	132	204	1320	16000	256-LBGA	256-BGA (27x27)	5.25 V	4.75 V	0 °C	85 °C	Surface Mount
Altera EPF6016AQC208-1N	132	171	1320	16000	208-BFQFP	208-PQFP (28x28)	3.6 V	3 V	0 °C	85 °C	Surface Mount
Altera EPF6016QC240-3N	132	199	1320	16000	240-BFQFP	240-PQFP (32x32)	5.25 V	4.75 V	0 °C	85 °C	Surface Mount
Altera EPF6016TI144-3N	132	117 I/O	1320	16000	144-LQFP	144-TQFP (20x20)	5.5 V	4.5 V	-40 C	100 °C	Surface Mount
Altera EPF6016ATC144-2	132	117 I/O	1320	16000	144-LQFP	144-TQFP (20x20)	3.6 V	3 V	0 °C	85 °C	Surface Mount
Altera EPF6016ATC144-3	132	117 I/O	1320	16000	144-LQFP	144-TQFP (20x20)	3.6 V	3 V	0 °C	85 °C	Surface Mount
Altera EPF6016QI208-3N	132	171	1320	16000	208-BFQFP	208-PQFP (28x28)	5.5 V	4.5 V	-40 C	100 °C	Surface Mount
Altera EPF6016TC144-2	132	117 I/O	1320	16000	144-LQFP	144-TQFP (20x20)	5.25 V	4.75 V	0 °C	85 °C	Surface Mount
Altera EPF6016QC208-3	132	171	1320	16000	208-BFQFP	208-PQFP (28x28)	5.25 V	4.75 V	0 °C	85 °C	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

FLEX 6000 Field Programmable Gate Array (FPGA) IC 199 1320 240-BFQFP

Technical documentation and resources
