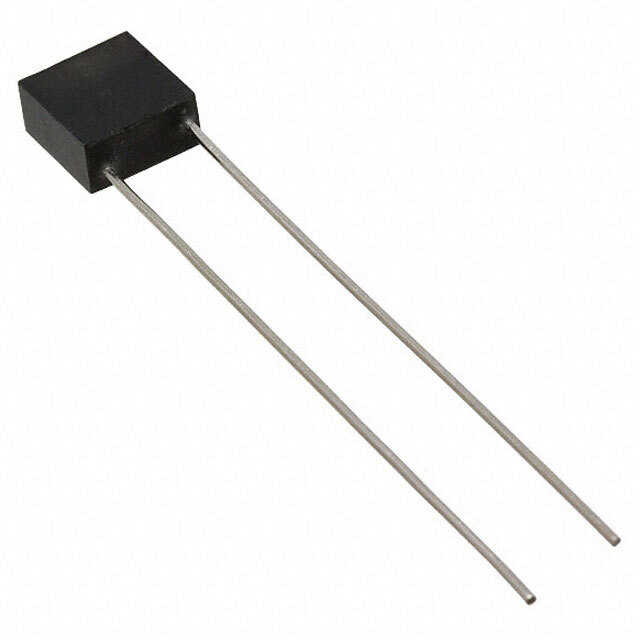

ACR09A104JGS
ActiveKEMET
CAP CER 0.1UF 25V NP0 RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsKEM_C1118_A-SERIES.pdf
ACR09A104JGS
ActiveKEMET
CAP CER 0.1UF 25V NP0 RADIAL
Deep-Dive with AI
DocumentsKEM_C1118_A-SERIES.pdf
Technical Specifications
Parameters and characteristics for this part
| Specification | ACR09A104JGS |
|---|---|
| Applications | General Purpose |
| Capacitance | 100000 pF |
| Features | High Temperature |
| Height - Seated (Max) [Max] [z] | 12.7 mm |
| Height - Seated (Max) [Max] [z] | 0.5 in |
| Lead Spacing | 10.16 mm |
| Lead Spacing | 0.4 in |
| Lead Style | Straight |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 200 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 0.5 in |
| Size / Dimension [x] | 12.7 mm |
| Size / Dimension [y] | 3.81 mm |
| Size / Dimension [y] | 0.15 " |
| Temperature Coefficient | NP0, C0G |
| Tolerance | 5 % |
| Voltage - Rated | 25 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ACR09A Series
0.1 µF ±5% 25V Ceramic Capacitor C0G, NP0 Radial
Documents
Technical documentation and resources
