3SU11030AB401FA0
ActiveSiemens

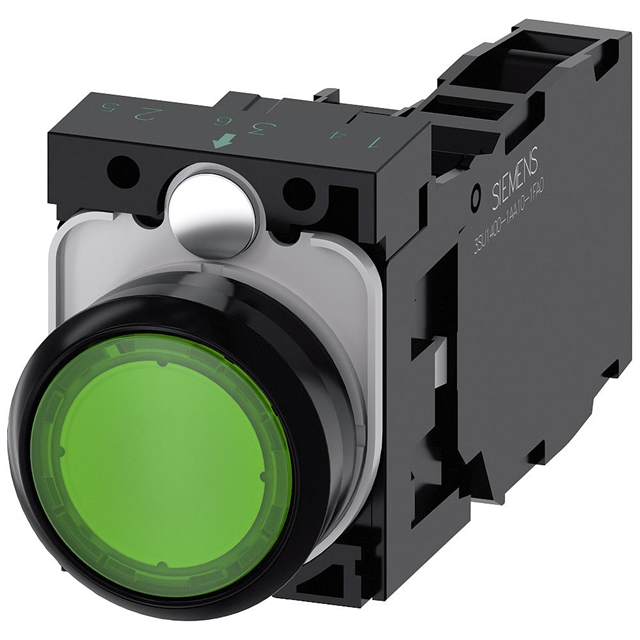

ILLUMINATED PUSHBUTTON. GREEN
Deep-Dive with AI
Search across all available documentation for this part.
3SU11030AB401FA0
ActiveSiemens
ILLUMINATED PUSHBUTTON. GREEN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3SU11030AB401FA0 |
|---|---|
| Actuator Type | Round, Button |
| Circuit | DPST-NO/NC |
| Color - Actuator/Cap | Green |
| Current Rating (Amps) | 10 A |
| Electrical Life | 10000000 Cycles |
| Illumination Type, Color | LED, Green |
| Ingress Protection | IP69K, IP67, IP66 |
| Mechanical Life | 3000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 22.3 mm |
| Switch Function | Off-Mom, On-Mom |
| Termination Style | Screw Terminal |
| Type | Illuminated, Standard |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
3SU1103 Series
| Part | Type | Voltage Rating - DC | Illumination Type, Color | Operating Temperature [Max] | Operating Temperature [Min] | Color - Actuator/Cap | Termination Style | Ingress Protection | Voltage Rating - AC | Circuit | Current Rating (Amps) | Mechanical Life | Actuator Type | Panel Cutout Dimensions [diameter] | Mounting Type | Electrical Life | Switch Function | Number of Positions | Depth Behind Flange | Illumination | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Siemens | Illuminated Standard | 500 V | Green LED | 70 °C | -25 °C | Green | Spring Terminal | IP66 IP67 IP69K | 500 V | SPST-NO | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom | ||||
Siemens | Illuminated Standard | 500 V | LED Red | 70 °C | -25 °C | Red | Spring Terminal | IP66 IP67 IP69K | 500 V | DPST-NO/NC | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom On-Mom | ||||
Siemens | Illuminated Standard | 500 V | LED White | 70 °C | -25 °C | Clear | Spring Terminal | IP66 IP67 IP69K | 500 V | DPST-NO/NC | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom On-Mom | ||||
Siemens | Illuminated Standard | 500 V | LED Yellow | 70 °C | -25 °C | Yellow | Screw Terminal | IP66 IP67 IP69K | 500 V | SPST-NO | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom | ||||
Siemens | Illuminated Standard | 500 V | Green LED | 70 °C | -25 °C | Green | Screw Terminal | IP66 IP67 IP69K | 500 V | DPST-NO/NC | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom On-Mom | ||||
Siemens | Illuminated Standard | 500 V | LED White | 70 °C | -25 °C | White | Screw Terminal | IP66 IP67 IP69K | 500 V | SPST-NO | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom | ||||
Siemens | Standard | 500 V | 70 °C | -25 °C | Screw Terminal | IP66 IP67 IP69K | 500 V | SPST-NO | 10 A | 1000000 Cycles | 22.3 mm | 10000000 Cycles | Off-On | 2 | 49.7 mm | Non-Illuminated | CCC CE CSA EAC UL | ||||
Siemens | Illuminated Standard | 500 V | Blue LED | 70 °C | -25 °C | Blue | Screw Terminal | IP66 IP67 IP69K | 500 V | SPST-NO | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom | ||||
Siemens | Illuminated Standard | 500 V | LED Yellow | 70 °C | -25 °C | Yellow | Spring Terminal | IP66 IP67 IP69K | 500 V | DPST-NO/NC | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | Off-Mom On-Mom | ||||
Siemens | Illuminated Standard | 500 V | LED Red | 70 °C | -25 °C | Red | Screw Terminal | IP66 IP67 IP69K | 500 V | SPST-NC | 10 A | 3000000 Cycles | Button Round | 22.3 mm | Panel Mount Front | 10000000 Cycles | On-Mom |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 94.77 | |
Description
General part information
3SU1103 Series
Pushbutton Switch DPST-NO/NC Standard, Illuminated Panel Mount, Front
