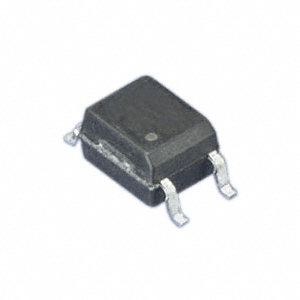

PC355NJ0000F
ActiveSHARP/Socle Technology
OPTOISO 3.75KV DARL 4-MINI-FLAT
Deep-Dive with AI
Search across all available documentation for this part.
PC355NJ0000F
ActiveSHARP/Socle Technology
OPTOISO 3.75KV DARL 4-MINI-FLAT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PC355NJ0000F |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 80 mA |
| Current Transfer Ratio (Min) [Min] | 600 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | Darlington |
| Package / Case | 4-SMD, Gull Wing |
| Rise / Fall Time (Typ) [custom] | 60 µs |
| Rise / Fall Time (Typ) [custom] | 53 µs |
| Supplier Device Package | 4-Mini-Flat |
| Vce Saturation (Max) [Max] | 1 V |
| Voltage - Isolation | 3750 Vrms |
| Voltage - Output (Max) [Max] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.12 | |
| 10 | $ 0.73 | |||
| 100 | $ 0.48 | |||
| 1000 | $ 0.38 | |||
| Digi-Reel® | 1 | $ 1.12 | ||
| 10 | $ 0.73 | |||
| 100 | $ 0.48 | |||
| 1000 | $ 0.38 | |||
| Tape & Reel (TR) | 3000 | $ 0.35 | ||
| 6000 | $ 0.34 | |||
| 15000 | $ 0.33 | |||
| 30000 | $ 0.33 | |||
Description
General part information
PC355 Series
Optoisolator Darlington Output 3750Vrms 1 Channel 4-Mini-Flat
