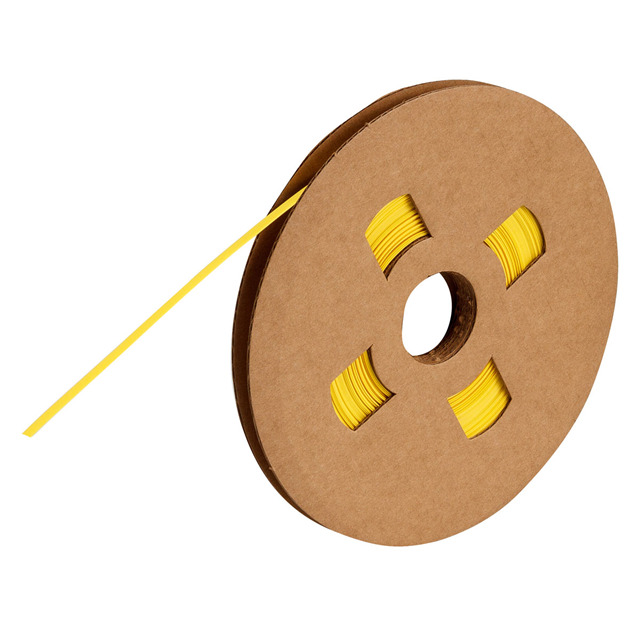

PS-C-125-YL

Active

BRADY

HEAT SHRINK TUBING

Search across all available documentation for this part.

Active

BRADY

HEAT SHRINK TUBING

Technical Specifications

Parameters and characteristics for this part

Part	Label Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Label Size	Label Size	Label Size [Max]	Label Size [Min]	Label Size [Min]	Label Size [Max]	Material	Label Size [x]	Label Size [x]	Label Size [diameter]	Label Size [diameter]	Length [x]	Length
BRADY PS-C-125-RD	Heat Shrinkable	135 °C	-55 °C	Red	3.2 mm 30.4 mm	0.13 in 1.2 in	2.8 mm	0.05 in	1.2 mm	0.11 in	Polyolefin (PO)
BRADY PS-C-094-YL	Heat Shrinkable			Yellow			2 mm	0.02 in	0.6 mm	0.08 "	Polyolefin (PO)	2.4 mm	0.09 in	2.1 in	53.3 mm
BRADY PS-C-1000-YL	Heat Shrinkable			Yellow	0.34 in 0.6 " 0.95 " 1 " 8.6 mm 15.2 mm 24.1 mm						Polyolefin (PO)
BRADY PS-C-125-YL	Heat Shrinkable			Yellow	3.2 mm 30.4 mm	0.13 in 1.2 in	2.8 mm	0.05 in	1.2 mm	0.11 in	Polyolefin (PO)
BRADY PS-C-1000-BK	Heat Shrinkable	135 °C	-55 °C	Black	0.34 in 0.6 " 0.95 " 1 " 8.6 mm 15.2 mm 24.1 mm						Polyolefin (PO)
BRADY PS-C-1000-WT	Heat Shrinkable			White	0.34 in 0.6 " 0.95 " 1 " 8.6 mm 15.2 mm 24.1 mm						Polyolefin (PO)
BRADY PS-C-125-GR	Heat Shrinkable	135 °C	-55 °C	Green	3.2 mm 30.4 mm	0.13 in 1.2 in	2.8 mm	0.05 in	1.2 mm	0.11 in	Polyolefin (PO)					100 ft	30.48 m
BRADY PS-C-125-YL-J	Heat Shrinkable			Yellow			0.11 in		0.05 in		Polyolefin (PO)	0.13 "			2.99 "
BRADY PS-C-125-BL	Heat Shrinkable	135 °C	-55 °C	Blue	3.2 mm 30.4 mm	0.13 in 1.2 in	2.8 mm	0.05 in	1.2 mm	0.11 in	Polyolefin (PO)					100 ft	30.48 m
BRADY PS-C-125-BK	Heat Shrinkable	135 °C	-55 °C	Black	3.2 mm 30.4 mm	0.13 in 1.2 in	2.8 mm	0.05 in	1.2 mm	0.11 in	Polyolefin (PO)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 136.61

General part information

Yellow Heat Shrinkable Label 0.13" W x 1.20" Dia (3.2mm x 30.4mm); Cable O.D. 0.05" ~ 0.11" (1.2mm ~ 2.8mm)
