1444-12825

Active

Hammond Manufacturing

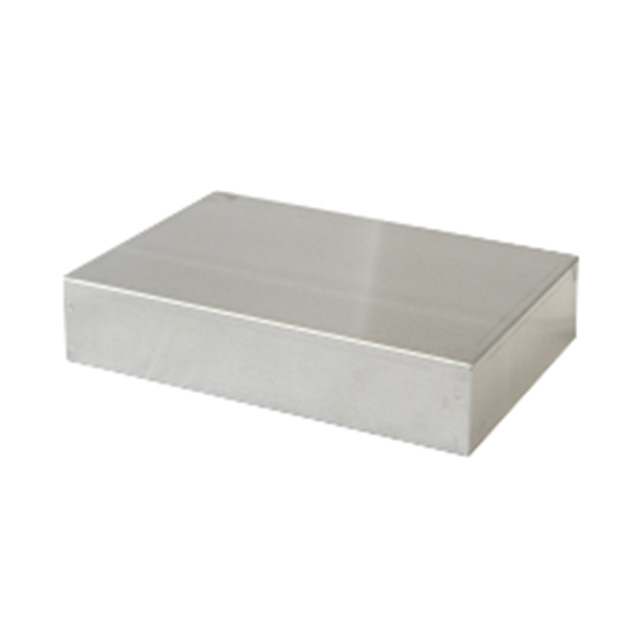

CHASSIS ALUM NATURAL 12"L X 8"W

Deep-Dive with AI

Search across all available documentation for this part.

Documents1444 Series 1434, 1444 Series

1444-12825

Active

Hammond Manufacturing

CHASSIS ALUM NATURAL 12"L X 8"W

Deep-Dive with AI

Documents1444 Series 1434, 1444 Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1444-12825

Area (L x W)	96 in˛
Area (L x W)	619 cm˛
Color	Natural
Container Type	Chassis
Design	Open End(s)
Features	Hardware not Provided
Height [z]	63.5 mm
Height [z]	2.5 in
Material	Metal, Aluminum
Size / Dimension [x]	12 in
Size / Dimension [x]	304.8 mm
Size / Dimension [y]	8 in
Size / Dimension [y]	203.2 mm
Thickness	1.3 mm
Thickness	0.051 "

1444 Series

Part	Design	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Area (L x W) [custom]	Area (L x W) [custom]	Features	Height [z]	Height [z]	Container Type	Color	Thickness	Thickness	Material	Weight	Weight	Area (L x W)	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]
Hammond Manufacturing 1444-17143	Open End(s)	17 in	355.6 mm	14 in	431.8 mm	238 in²	1535 cm²	Hardware not Provided	76.2 mm	3 in	Chassis	Natural	1.3 mm	0.051 "	Aluminum Metal
Hammond Manufacturing 1444-12	Open End(s)	7 "	127 mm	5 "	177.8 mm	35 in²	226 cm²	Hardware not Provided	50.8 mm	2 in	Chassis	Natural	1.02 mm	0.04 in	Aluminum Metal	156.04 g	0.344 lb
Hammond Manufacturing 1444-17133	Open End(s)	17 in	330.2 mm	13 in	431.8 mm			Hardware not Provided	76.2 mm	3 in	Chassis	Natural	1.3 mm	0.051 "	Aluminum Metal			221 in²	1426 cm²
Hammond Manufacturing 1444-33	Open End(s)	17 in	254 mm	10 in	431.8 mm			Hardware not Provided	101.6 mm	101.6 mm	Chassis	Natural	1.02 mm	0.04 in	Aluminum Metal	952.5 g	2.1 lb	170 in²	1097 cm˛
Hammond Manufacturing 1444-9	Open End(s)	8 "	101.6 mm	4 "	203.2 mm			Hardware not Provided	25.4 mm	1 in	Chassis	Natural	1.02 mm	0.04 in	Aluminum Metal	112.04 g	0.247 lb	32 in²	206 cm²
Hammond Manufacturing 1444-32	Open End(s)	17 in	254 mm	10 in	431.8 mm			Hardware not Provided	76.2 mm	3 in	Chassis	Natural	1.02 mm	0.04 in	Aluminum Metal	725.7 g	1.6 lbs	170 in²	1097 cm˛
Hammond Manufacturing 1444-1773	Open End(s)	17 in	177.8 mm	7 in	431.8 mm			Hardware not Provided	76.2 mm	3 in	Chassis	Natural	1.3 mm	0.051 "	Aluminum Metal			119 in²	768 cm²
Hammond Manufacturing 1444-14103	Open End(s)	14 in	254 mm	10 in	355.6 mm			Hardware not Provided	76.2 mm	3 in	Chassis	Natural	1.3 mm	0.051 "	Aluminum Metal					140 in²	903 cm²
Hammond Manufacturing 1444-12825	Open End(s)	12 in	203.2 mm	8 in	304.8 mm			Hardware not Provided	63.5 mm	2.5 in	Chassis	Natural	1.3 mm	0.051 "	Aluminum Metal			96 in˛	619 cm˛
Hammond Manufacturing 1444-16	Open End(s)	10 in	152.4 mm	6 "	254 mm			Hardware not Provided	50.8 mm	2 in	Chassis	Natural	1.02 mm	0.04 in	Aluminum Metal	242.22 g	0.534 lb	60 in²	387 cm²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.81
		5	$ 33.02
		10	$ 31.31
		25	$ 29.34
		50	$ 28.03
		100	$ 26.86
		250	$ 25.51

Description

General part information

1444 Series

Chassis Metal, Aluminum Natural Open End(s) 12.000" L x 8.000" W (304.80mm x 203.20mm) X 2.500" (63.50mm)

Documents

Technical documentation and resources

1444 Series

Datasheet

1434, 1444 Series

Datasheet
