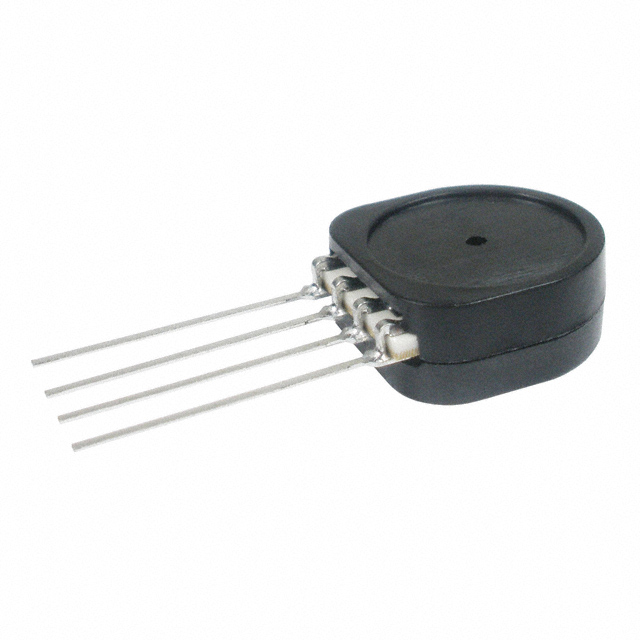

SSCSSND150PA2A3

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 150PSIA 12BIT 4SIP

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Productivity Solutions

SENSOR 150PSIA 12BIT 4SIP

Technical Specifications

Parameters and characteristics for this part

Specification	SSCSSND150PA2A3

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	250 PSI
Maximum Pressure [Max]	1723.69 kPa
Mounting Type	Through Hole
Operating Pressure	1034.21 kPa
Operating Pressure	150 PSI
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output	12 b
Output Type	I2C
Package / Case	4-SIP Module
Port Style	No Port
Supplier Device Package	4-SIP
Termination Style	PC Pin
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	3 V

Part	Supplier Device Package	Termination Style	Output	Accuracy	Features	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Port Style	Maximum Pressure [Max]	Maximum Pressure [Max]	Output Type	Applications	Operating Pressure	Operating Pressure	Mounting Type
Honeywell Sensing and Productivity Solutions SSCSSND150PA2A3	4-SIP	PC Pin	12 b	0.25 %	Amplified Output Temperature Compensated	4-SIP Module	3.6 V	3 V	85 °C	-40 °C	No Port	250 PSI	1723.69 kPa	I2C	Board Mount	1034.21 kPa	150 PSI	Through Hole
