Q2-F-5/8-01-QB48IN-5

Active

Qualtek

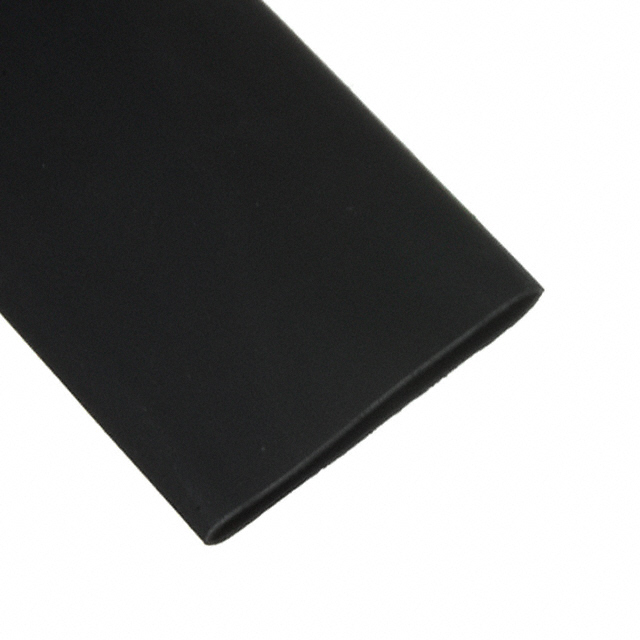

HEATSHRINK POL 5/8" BLK 4' 1=1PC

Search across all available documentation for this part.

Active

Qualtek

HEATSHRINK POL 5/8" BLK 4' 1=1PC

Technical Specifications

Parameters and characteristics for this part

Specification	Q2-F-5/8-01-QB48IN-5

Color	Black
Features	Flame Retardant
Inner Diameter - Recovered [diameter]	0.315 in
Inner Diameter - Recovered [diameter]	8 mm
Inner Diameter - Supplied [diameter]	0.625 in
Inner Diameter - Supplied [diameter]	15.88 mm
Length [x]	1.22 m
Length [x]	4 ft
Material	Polyolefin (PO)
Operating Temperature [Max]	135 °C
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.027 "
Recovered Wall Thickness	0.69 mm
Shelf Life	144 Months
Shrink Temperature	70 °C
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	40 °C
Storage/Refrigeration Temperature [Min]	-10 °C, -50 °F
Type	Tubing, Flexible

Part	Length	Length	Length	Length	Shrinkage Ratio	Type	Operating Temperature [Max]	Operating Temperature [Min]	Color	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Shrink Temperature	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Recovered Wall Thickness	Recovered Wall Thickness	Features	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Shelf Life	Material	Spool Size	Spool Size	Length	Length [x]	Length [x]	Shelf Life Start
Qualtek Q2-F-5/8-01-SS200FT	Enter Number of Feet in Order Quantity	1.5 " 3 " 6 "	38.1 mm 76.2 mm 152.4 mm	0.125 ' 0.25 ft	2 to 1	Tubing Flexible	135 °C	-55 °C	Black	-50 °F -10 °C	40 °C	70 °C	0.315 in	8 mm	0.027 "	0.69 mm	Flame Retardant	0.625 in	15.88 mm	144 Months	Polyolefin (PO)	61 m	200 '	0.5 '
Qualtek Q2-F-5/8-01-QB48IN-5					2 to 1	Tubing Flexible	135 °C	-55 °C	Black	-50 °F -10 °C	40 °C	70 °C	0.315 in	8 mm	0.027 "	0.69 mm	Flame Retardant	0.625 in	15.88 mm	144 Months	Polyolefin (PO)				1.22 m	4 ft
Qualtek Q2-F-5/8-01-MS50FT			15.2 m	50 ft	2 to 1	Tubing Flexible	135 °C	-55 °C	Black	-50 °F -10 °C	40 °C	70 °C	0.315 in	8 mm	0.027 "	0.69 mm	Flame Retardant	0.625 in	15.88 mm	144 Months	Polyolefin (PO)						Date of Manufacture

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Heat Shrink Tubing, Flexible 0.625" (15.88mm) 2 to 1 Black 4.00' (1.22m)
