10035465-101LF

Obsolete

Amphenol ICC (FCI)

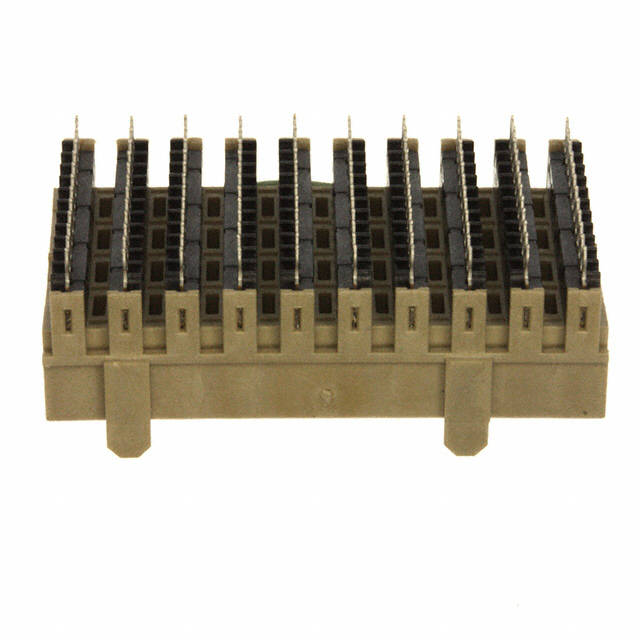

CONN RCPT HIGH SPEED 120POS PCB

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN RCPT HIGH SPEED 120POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10035465-101LF

Color	Natural
Connector Style	High Speed
Connector Type	Receptacle, Female Sockets
Connector Usage	Daughtercard
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Layout, Typical	40
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Columns	10
Number of Positions	120
Number of Positions Loaded	All
Number of Rows	12
Pitch [x]	0.055 in
Pitch [x]	1.4 mm
Termination	Press-Fit

Part	Number of Rows	Number of Positions	Contact Layout, Typical	Contact Finish	Connector Style	Number of Positions Loaded	Pitch [x]	Pitch [x]	Connector Usage	Material Flammability Rating	Number of Columns	Termination	Connector Type	Color	Mounting Type	Contact Finish Thickness	Contact Finish Thickness
Amphenol ICC (FCI) 10035465-101LF	12	120	40	Gold	High Speed	All	0.055 in	1.4 mm	Daughtercard	UL94 V-0	10	Press-Fit	Receptacle Female Sockets	Natural	Through Hole	0.76 Ám	30 Áin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

120 Connector Receptacle, Female Sockets Through Hole Natural High Speed

Technical documentation and resources
