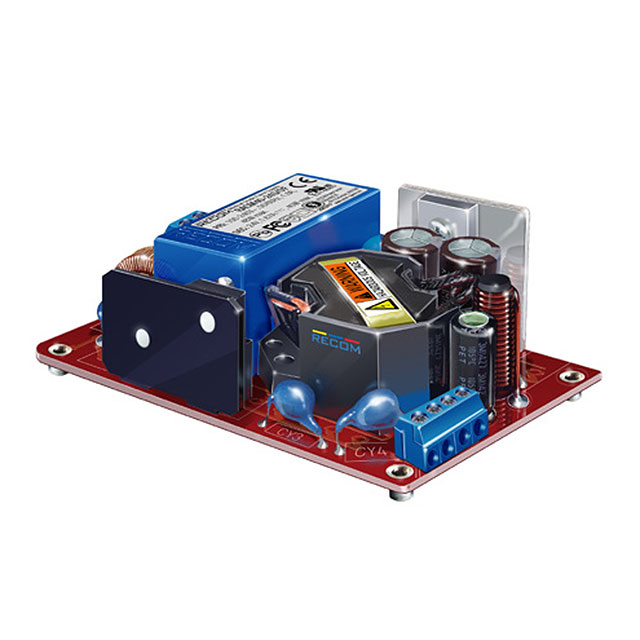

RACM40-05S/OF

RECOM Power

SWITCHING POWER SUPPLIES 40W 5V 8000MA OPEN FRAME

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RACM40-05S/OF

RECOM Power

SWITCHING POWER SUPPLIES 40W 5V 8000MA OPEN FRAME

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RACM40-05S/OF

Applications	Medical
Approval Agency	CE, cURus
Current - Output 1	8 A
Efficiency	90 %
Features	Universal Input, Adjustable Output, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	76.2 mm
Size / Dimension [x]	3 "
Size / Dimension [y]	2 in
Size / Dimension [y]	50.8 mm
Size / Dimension [z]	26.5 mm
Size / Dimension [z]	1.04 in
Type	Open Frame
Voltage - Isolation	4000 V
Voltage - Output 1	5 V

RACM40-05 Series

Switching Power Supplies 40W 12V 3340mA

Part	Power (Watts)	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output 1	Approval Agency	Number of Outputs	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Efficiency	Operating Temperature [Max]	Operating Temperature [Min]	Features	Type	Voltage - Isolation	Mounting Type	Standard Number	Voltage - Output 1	Applications	Package / Case	Line Regulation	Load Regulation	Current - Output (Max) [Max]
RECOM Power RACM40-12SK/OF-CTN	40 W	264 VAC 370 VDC	80 VAC 120 VDC	3.334 A	CE CSA cURus	1	1.6 "	78.3 mm	40.6 mm	25.5 mm	3.08 "	1 "	90 %	85 °C	-40 °C	Standby Output Universal Input	Open Frame	4000 V	Chassis Mount	60601-1	12 V	Medical
RECOM Power RACM40-12SK-T	40 W	264 VAC 370 VDC	80 VAC 120 VDC		CE CSA cURus EAC	1	1.83 in	83.2 mm	46.4 mm	30.4 mm	3.28 in	1.2 "	90 %	85 °C	-40 °C	Baseplate Standby Output Universal Input	Enclosed		Through Hole		12 V	Medical	6-DIP Module	0.05 %	0.7 %	3.334 A
RECOM Power RACM40-48SK/OF-CTN	40 W	264 VAC 370 VDC	80 VAC 120 VDC	833 mA	CE CSA cURus	1	1.6 "	78.3 mm	40.6 mm	25.5 mm	3.08 "	1 "	90 %	85 °C	-40 °C	Standby Output Universal Input	Open Frame	4000 V	Chassis Mount	60601-1	48 V	Medical
RECOM Power RACM40-05SK-T	30 W	264 VAC 370 VDC	80 VAC 120 VDC		CE CSA cURus EAC	1	1.83 in	83.2 mm	46.4 mm	30.4 mm	3.28 in	1.2 "	87 %	85 °C	-40 °C	Baseplate Standby Output Universal Input	Enclosed		Through Hole		5 V	Medical	6-DIP Module	0.1 %	0.7 %	6 A
RECOM Power RACM40-48SK/OF/PCB-T	40 W	264 VAC 370 VDC	80 VAC 120 VDC		CE CSA cURus	1	1.6 "	78.3 mm	40.6 mm	28.9 mm	3.08 "	1.14 "	90 %	85 °C	-40 °C	Standby Output Universal Input	Open Frame		Through Hole		48 V	Medical	7-DIP Module 6 Leads	0.05 %	0.5 %	833 mA
RECOM Power RACM40-05S/OF	40 W			8 A	CE cURus	1	2 in	76.2 mm	50.8 mm	26.5 mm	3 "	1.04 in	90 %	85 °C	-40 °C	Adjustable Output DC Input Capable Universal Input	Open Frame	4000 V	Chassis Mount		5 V	Medical
RECOM Power RACM40-05SK/OF/PCB-T	30 W	264 VAC 370 VDC	80 VAC 120 VDC		CE CSA cURus	1	1.6 "	78.3 mm	40.6 mm	28.9 mm	3.08 "	1.14 "	87 %	85 °C	-40 °C	Standby Output Universal Input	Open Frame		Through Hole		5 V	Medical	7-DIP Module 6 Leads	0.1 %	0.7 %	6 A
RECOM Power RACM40-15SK/OF	40 W	264 VAC 370 VDC	80 VAC 120 VDC		CE CSA cURus	1	1.6 "	78.3 mm	40.6 mm	25.5 mm	3.08 "	1 "	90 %	85 °C	-40 °C	Standby Output Universal Input	Open Frame	4000 V	Chassis Mount	60601-1	15 V	Medical
RECOM Power RACM40-05SK/OF-CTN	30 W	264 VAC 370 VDC	80 VAC 120 VDC	6 A	CE CSA cURus	1	1.6 "	78.3 mm	40.6 mm	25.5 mm	3.08 "	1 "	87 %	85 °C	-40 °C	Standby Output Universal Input	Open Frame	4000 V	Chassis Mount	60601-1	5 V	Medical
RECOM Power RACM40-15SK/OF/2X3	40 W	264 VAC 370 VDC	80 VAC 120 VDC		CE CSA cURus	1	53 mm	3.08 in	2.09 in	25.4 mm	78.3 mm	25.5 mm	90 %	85 °C	-40 °C	Standby Output Universal Input	Open Frame	4000 V	Chassis Mount	60601-1	15 V	Medical

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 88.11
Sager	N/A	1	$ 87.94
		5	$ 82.46
		10	$ 77.60
		25	$ 72.28
		50	$ 69.43
		100	$ 67.64
		250	$ 64.34

Description

General part information

RACM40-05 Series

Switching Power Supplies 40W 12V 3340mA

Documents

Technical documentation and resources

Datasheet

Document
