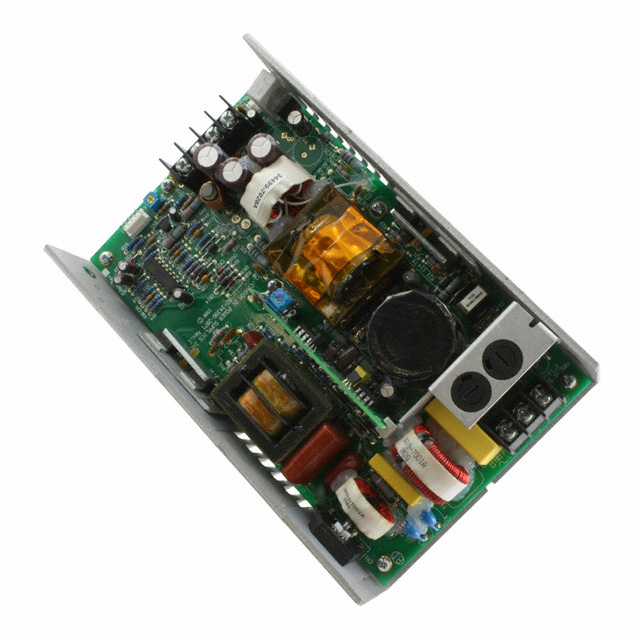

GPFM250-28G

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 28V 180W

Search across all available documentation for this part.

Active

SL POWER / Advanced Energy

AC/DC CONVERTER 28V 180W

Technical Specifications

Parameters and characteristics for this part

Specification	GPFM250-28G

Applications	Medical
Approval Agency	cURus, CE, TUV
Efficiency	75 %
Features	PFC, Standby Output, Universal Input, Remote Sense, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	250 W
Power (Watts)	180 W
Size / Dimension [x]	8 "
Size / Dimension [x]	203.2 mm
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	44.5 mm
Size / Dimension [z]	1.75 "
Type	Open Frame
Voltage - Output 1	28 V

Part	Features	Approval Agency	Power (Watts)	Power (Watts)	Voltage - Output 1	Mounting Type	Type	Number of Outputs	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Applications	Current - Output 1
SL POWER / Advanced Energy GPFM250-24G	Adjustable Output PFC Remote Sense Standby Output Universal Input	CE cURus TUV	250 W	180 W	24 V	Chassis Mount	Open Frame	1	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "	75 %	Medical
SL POWER / Advanced Energy GPFM250-28G	Adjustable Output PFC Remote Sense Standby Output Universal Input	CE cURus TUV	250 W	180 W	28 V	Chassis Mount	Open Frame	1	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "	75 %	Medical
SL POWER / Advanced Energy GPFM250-15G	Adjustable Output PFC Remote Sense Standby Output Universal Input	CE cURus TUV	250 W	180 W	15 V	Chassis Mount	Open Frame	1	8 "	44.5 mm	127 mm	203.2 mm	1.75 "	5 "	75 %	Medical	12 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Open Frame AC DC Converters 1 Output 28V 85 ~ 264 VAC Input
