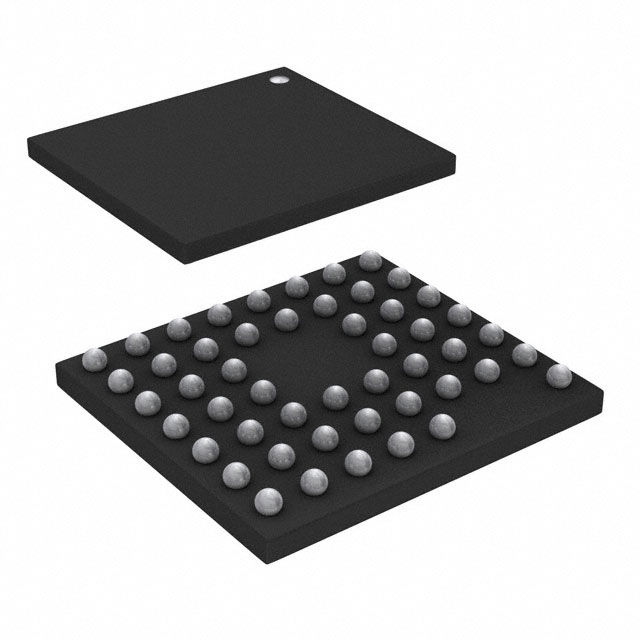

NRF52832-CIAA-R7

Active

Nordic Semiconductor ASA

SOC, CMOS, PBGA56, WLCSP-56

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NRF52832-CIAA-R7

Current - Receiving	5.4 mA
Current - Transmitting	7.5 mA
Data Rate (Max)	2 Mbps
Frequency	2.4 GHz
GPIO	32
Modulation	GFSK
Mounting Type	Surface Mount
Package / Case	50-XFBGA, WLCSP
Power - Output	4 dBm
Protocol	Bluetooth v5.3
RF Family/Standard	Bluetooth
Serial Interfaces	UART, I2S, SPI
Supplier Device Package	50-WLCSP (2.96x3.23)
Type	TxRx + MCU
Voltage - Supply [Max]	3.6 V
Voltage - Supply [Min]	1.7 V

NRF52832 Series

Part	Supplier Device Package	Data Rate (Max)	Current - Transmitting	Current - Receiving	Serial Interfaces	Mounting Type	Frequency	Type	Protocol	Power - Output	Modulation	Voltage - Supply [Max]	Voltage - Supply [Min]	RF Family/Standard	GPIO	Package / Case	Current - Transmitting [Min]	Current - Transmitting [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Memory Size	Current - Receiving [Max]	Current - Receiving [Min]
Nordic Semiconductor ASA NRF52832-QFAA-R7	48-QFN (6x6)	2 Mbps	7.5 mA	5.4 mA	I2S SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	GFSK	3.6 V	1.7 V	Bluetooth	32	48-VFQFN Exposed Pad
Nordic Semiconductor ASA NRF52832-CIAA-R7	50-WLCSP (2.96x3.23)	2 Mbps	7.5 mA	5.4 mA	I2S SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	GFSK	3.6 V	1.7 V	Bluetooth	32	50-XFBGA WLCSP
Nordic Semiconductor ASA NRF52832-QFAA-T	48-QFN (6x6)	2 Mbps	7.5 mA	5.4 mA	I2S SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	GFSK	3.6 V	1.7 V	Bluetooth	32	48-VFQFN Exposed Pad
Nordic Semiconductor ASA NRF52832-CIAA-R	50-WLCSP (2.96x3.23)	2 Mbps	7.5 mA	5.4 mA	I2S SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	GFSK	3.6 V	1.7 V	General ISM > 1GHz	32	50-XFBGA WLCSP
Nordic Semiconductor ASA NRF52832-QFAB-G-R7	48-QFN (6x6)	2 Mbps			I2S SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	FSK	3.6 V	1.7 V	Bluetooth	32	48-VFQFN Exposed Pad	2.7 mA	16.6 mA	85 °C	-40 °C	32 kB 256 kB	12.9 mA	3.5 mA
Nordic Semiconductor ASA NRF52832-QFAB-G-R	48-QFN (6x6)	2 Mbps			I2S SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	FSK	3.6 V	1.7 V	Bluetooth	32	48-VFQFN Exposed Pad	2.7 mA	16.6 mA	85 C	-40 °C	32 kB 256 kB	12.9 mA	3.5 mA
Nordic Semiconductor ASA NRF52832-QFAB-R	48-QFN (6x6)	2 Mbps	7.1 mA	6.5 mA	I2C SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	GFSK	3.6 V	1.7 V	Bluetooth General ISM > 1GHz	32	48-VFQFN Exposed Pad			85 °C	-40 °C	32 kB 256 kB
Nordic Semiconductor ASA NRF52832-QFAB-R7	48-QFN (6x6)	2 Mbps	7.5 mA	5.4 mA	I2S SPI UART	Surface Mount	2.4 GHz	TxRx + MCU	Bluetooth v5.3	4 dBm	GFSK	3.6 V	1.7 V	Bluetooth	32	48-VFQFN Exposed Pad					32 kB 256 kB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.35
		100	$ 2.86
		500	$ 2.48
	Digi-Reel®	1	$ 3.35
		100	$ 2.86
		500	$ 2.48
	Tape & Reel (TR)	1500	$ 2.27

Description

General part information

NRF52832 Series

IC RF TxRx + MCU Bluetooth Bluetooth v5.3 2.4GHz 50-XFBGA, WLCSP

Documents

Technical documentation and resources

No documents available
