BL1200P4054481S1PCAC

Active

GlobTek, Inc.

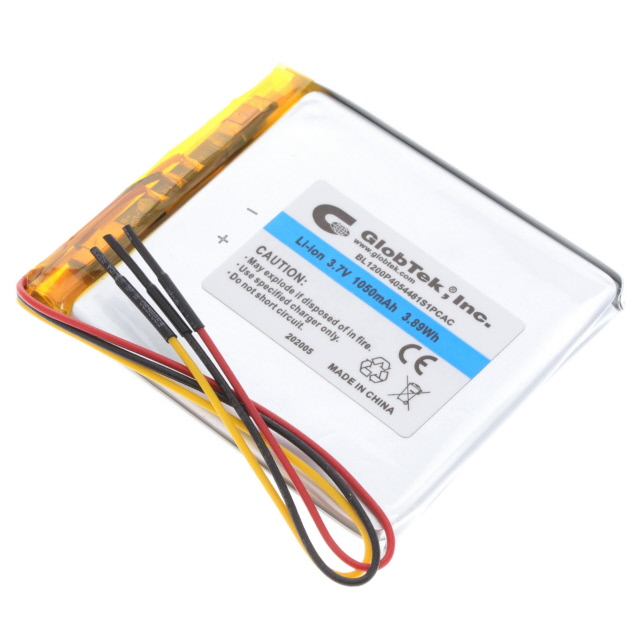

BATT LITH-ION 3.7V 1.05AH 404852

Search across all available documentation for this part.

Active

GlobTek, Inc.

BATT LITH-ION 3.7V 1.05AH 404852

Technical Specifications

Parameters and characteristics for this part

Specification	BL1200P4054481S1PCAC

Battery Cell Size	404852
Battery Chemistry	Lithium-Ion
Capacity	1050 mAh
Discharge Rate	1.05 A
Shipping Info	Due to restrictions, only ground shipment is allowed.
Size / Dimension [x]	53 mm
Size / Dimension [x]	2.09 in
Size / Dimension [y]	1.89 in
Size / Dimension [y]	48 mm
Size / Dimension [z]	0.16 in
Size / Dimension [z]	4 mm
Standard Charge Current	525 mA
Standard Charge Time	2.5 hrs
Termination Style	Wire Leads
Voltage - Rated	3.7 V

Part	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Discharge Rate	Battery Chemistry	Voltage - Rated	Standard Charge Time	Standard Charge Current	Capacity	Termination Style	Battery Cell Size	Shipping Info
GlobTek, Inc. BL1200P4054481S1PCAC	0.16 in	1.89 in	53 mm	2.09 in	4 mm	48 mm	1.05 A	Lithium-Ion	3.7 V	2.5 hrs	525 mA	1050 mAh	Wire Leads	404852	Due to restrictions only ground shipment is allowed.

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

404852 3.7 V Lithium-Ion Battery Rechargeable (Secondary) 1.05Ah
