5520212F
ActiveDIALIGHT

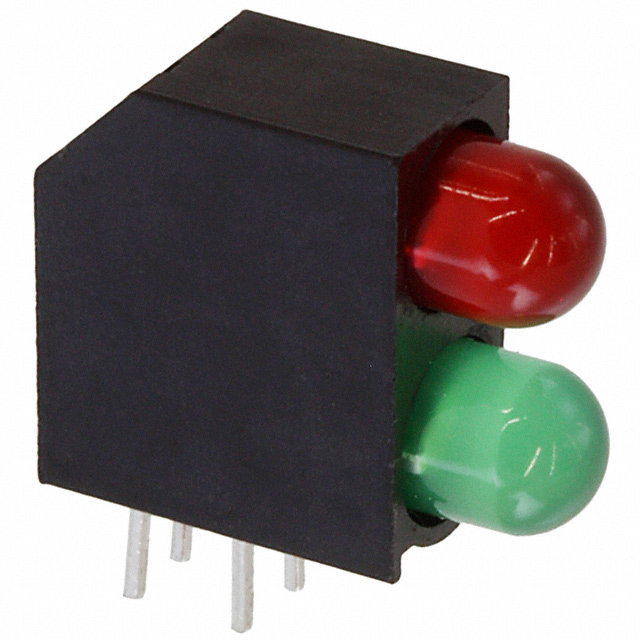

LED CBI BI-LVL GRN/RED DIFF RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5520212F
ActiveDIALIGHT
LED CBI BI-LVL GRN/RED DIFF RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5520212F |
|---|---|
| Color | Red (x 1), Green (x 1) |
| Configuration | 2 High |
| Current | 20 mA, 25 mA |
| Lens Type | Diffused |
| Millicandela Rating [custom] | 10 mcd |
| Millicandela Rating [custom] | 6.3 mcd |
| Mounting Type | Through Hole, Right Angle |
| Viewing Angle | 60 ° |
| Voltage Rating | 2.1 V, 2.2 V |
| Wavelength - Peak | 563 nm, 650 nm |
5520212 Series
| Part | Millicandela Rating [custom] | Millicandela Rating [custom] | Color | Mounting Type | Current | Viewing Angle | Wavelength - Peak | Configuration | Lens Type | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|
DIALIGHT | 10 mcd | 6.3 mcd | Green (x 1) Red (x 1) | Through Hole Right Angle | 20 mA 25 mA | 60 ° | 563 nm 650 nm | 2 High | Diffused | 2.1 V 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.32 | |
| 50 | $ 1.55 | |||
| 100 | $ 1.19 | |||
| 500 | $ 1.08 | |||
| 1000 | $ 0.92 | |||
| 2000 | $ 0.87 | |||
| 5000 | $ 0.85 | |||
| 10000 | $ 0.84 | |||
Description
General part information
5520212 Series
LED Circuit Board Indicator LED Circuit Board Indicator 2 High Green (x 1), Red (x 1) Diffused 2.1V Green, 2.2V Red 25mA Green, 20mA Red Through Hole, Right Angle
