5227079-6
ActiveTE Connectivity Linx

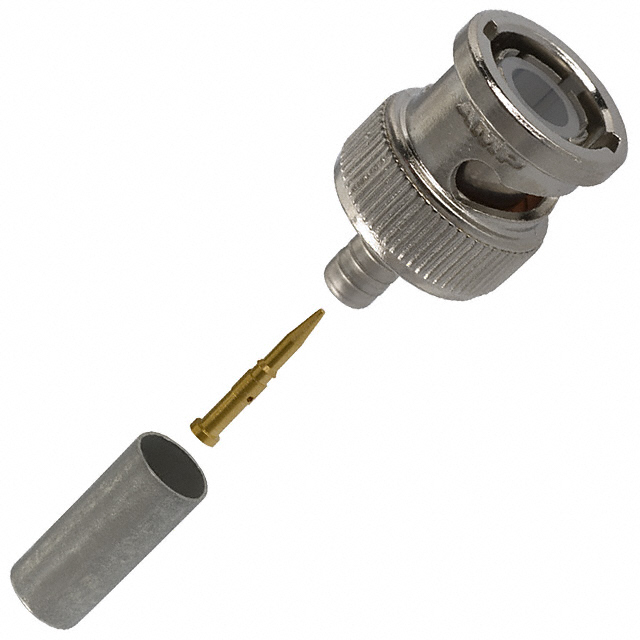

CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5227079-6
ActiveTE Connectivity Linx
CONN BNC PLUG STR 50 OHM CRIMP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5227079-6 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | 223, 55B, 55A, RG-55 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Fastening Type | Bayonet Lock |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Includes | 1 Ferrule, 1 Contact, 1 Connector |
| Insertion Loss | 0.2 dB |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 6.71 | |
Description
General part information
5227079 Series
BNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
