Technical Specifications
Parameters and characteristics for this part
| Specification | P70-1030045R |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 16 µin |
| Contact Finish Thickness | 0.41 µm |
| Contact Material | Brass |

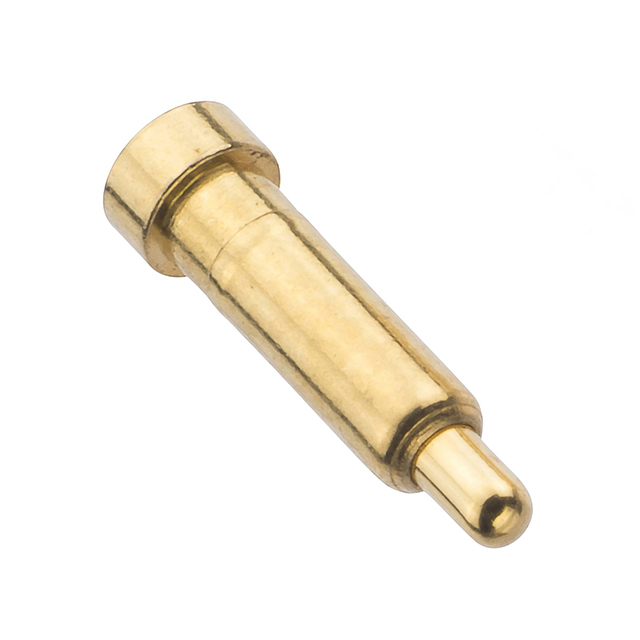

| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 2 A |
| Mating Cycles | 10000 |
| Maximum Working Height [Max] | 0.256 in |
| Maximum Working Height [Max] | 6.5 mm |
| Minimum Working Height [Min] | 6 mm |
| Minimum Working Height [Min] | 0.236 in |
| Mounting Type | Surface Mount |
| Operating Force - Mid Compression | 131.54 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Pad Layout Dimension [diameter] | 2.2 mm |
| Pad Layout Dimension [diameter] | 0.087 in |
| Plunger Size [diameter] | 0.035 in |
| Plunger Size [diameter] | 0.9 mm |
| Recommended Working Height [z] | 0.244 " |
| Recommended Working Height [z] | 6.2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.09 | |
| 10 | $ 0.92 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| Digi-Reel® | 1 | $ 1.09 | ||
| 10 | $ 0.92 | |||
| 25 | $ 0.88 | |||
| 50 | $ 0.86 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| Tape & Reel (TR) | 600 | $ 0.67 | ||
| 1200 | $ 0.60 | |||
| 1800 | $ 0.56 | |||
| 3000 | $ 0.54 | |||
| 6000 | $ 0.52 | |||
| 15000 | $ 0.49 | |||
| Newark | Each (Supplied on Full Reel) | 800 | $ 0.65 | |
| 1600 | $ 0.59 | |||
Description
General part information
P70-10300 Series
Contact Spring Surface Mount
