ASMA010X174S11
ActiveSiretta Ltd

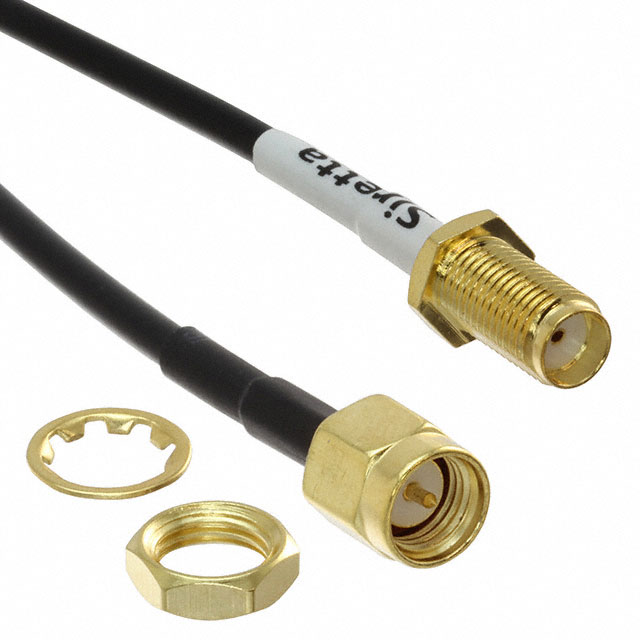

CBL ASSY SMA JACK TO PLUG 3.937"
Deep-Dive with AI
Search across all available documentation for this part.
ASMA010X174S11
ActiveSiretta Ltd
CBL ASSY SMA JACK TO PLUG 3.937"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ASMA010X174S11 |
|---|---|
| 1st Connector | SMA Jack |
| 1st Connector Mounting Feature | Bulkhead - Front Side Nut |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | SMA Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-174 |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 0.1 m |
| Length [x] | 3.937 in |
| Style | SMA to SMA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 14.19 | |
| 10 | $ 10.91 | |||
| 25 | $ 9.87 | |||
| 50 | $ 9.16 | |||
| 100 | $ 8.52 | |||
| 250 | $ 7.77 | |||
| 500 | $ 7.42 | |||
Description
General part information
ASMA010 Series
Cable Assembly Coaxial SMA to SMA RG-174 3.937" (100.00mm)
Documents
Technical documentation and resources
No documents available
