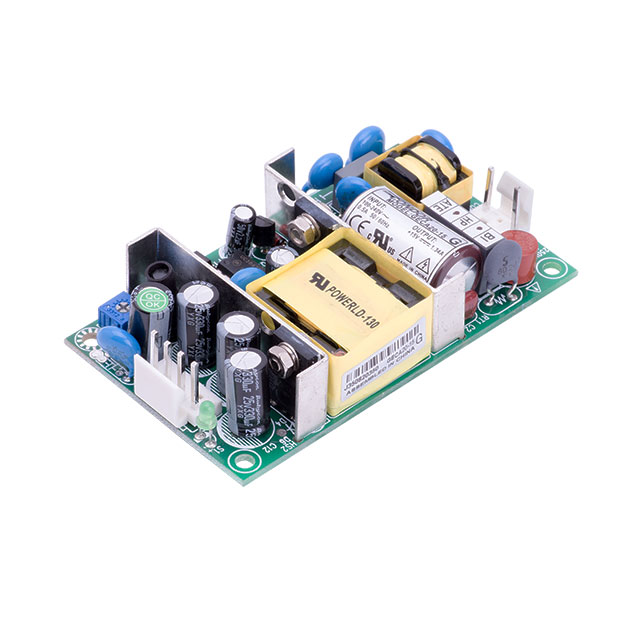

GECA20-24G

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 20W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 20W

Technical Specifications

Parameters and characteristics for this part

Specification	GECA20-24G

Applications	ITE (Commercial)
Approval Agency	CE, CB
Current - Output 1	840 mA
Efficiency	80 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	0 °C
Power (Watts)	20 W
Size / Dimension [x]	89.1 mm
Size / Dimension [x]	3.5 in
Size / Dimension [y]	51 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	21.6 mm
Size / Dimension [z]	0.85 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	24 V

Part	Approval Agency	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Applications	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Operating Temperature [Max]	Efficiency	Mounting Type	Features	Current - Output 1	Number of Outputs	Type	Power (Watts)	Current - Output 1 [custom]
SL POWER / Advanced Energy GECA20-24G	CB CE	24 V	90 VAC	264 VAC	ITE (Commercial)	89.1 mm	3.5 in	51 mm	21.6 mm	0.85 "	2 in	45 °C	80 %	Chassis Mount	Adjustable Output Universal Input	840 mA	1	Open Frame	20 W
SL POWER / Advanced Energy GECA20-5G	CB CE	5.1 V	90 VAC	264 VAC	ITE (Commercial)	89.1 mm	3.5 in	51 mm	21.6 mm	0.85 "	2 in	45 °C	80 %	Chassis Mount	Adjustable Output Universal Input	4 A	1	Open Frame	20 W
SL POWER / Advanced Energy GECA20-15G	CB CE	15 V	90 VAC	264 VAC	ITE (Commercial)	89.1 mm	3.5 in	51 mm	21.6 mm	0.85 "	2 in	45 °C	80 %	Chassis Mount	Adjustable Output Universal Input		1	Open Frame	20 W	1.34 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
