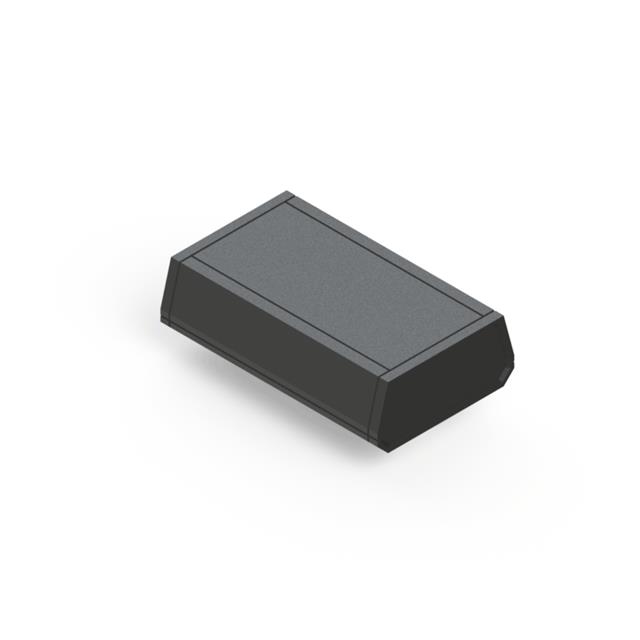

A27,BK

Active

Serpac

BOX ABS BLACK 5.31"L X 3.35"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS BLACK 5.31"L X 3.35"W

Technical Specifications

Parameters and characteristics for this part

Specification	A27,BK

Area (L x W)	17.8 in²
Area (L x W)	115 cm˛
Color	Black
Container Type	Box
Design	Split Sides and End Panel(s)
Features	PCB Supports
Height [z]	38.1 mm
Height [z]	1.5 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40
Thickness	2.54 mm
Thickness	0.1 in
Weight	97.98 g
Weight	0.216 lb

Part	Features	Area (L x W)	Area (L x W)	Material	Thickness	Thickness	Design	Height [z]	Height [z]	Container Type	Material Flammability Rating	Weight	Weight	Ratings	Color
Serpac A27,BK	PCB Supports	17.8 in²	115 cm˛	Plastic ABS	2.54 mm	0.1 in	Split Sides and End Panel(s)	38.1 mm	1.5 in	Box	UL94 HB	97.98 g	0.216 lb	IP40	Black
Serpac A27,GY	PCB Supports	17.8 in²	115 cm˛	Plastic ABS	2.54 mm	0.1 in	Split Sides and End Panel(s)	38.1 mm	1.5 in	Box	UL94 HB	97.98 g	0.216 lb	IP40	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Black Split Sides and End Panel(s) 5.310" L x 3.350" W (134.87mm x 85.09mm) X 1.500" (38.10mm)
