BGM220-EK4314A

Active

Silicon Labs

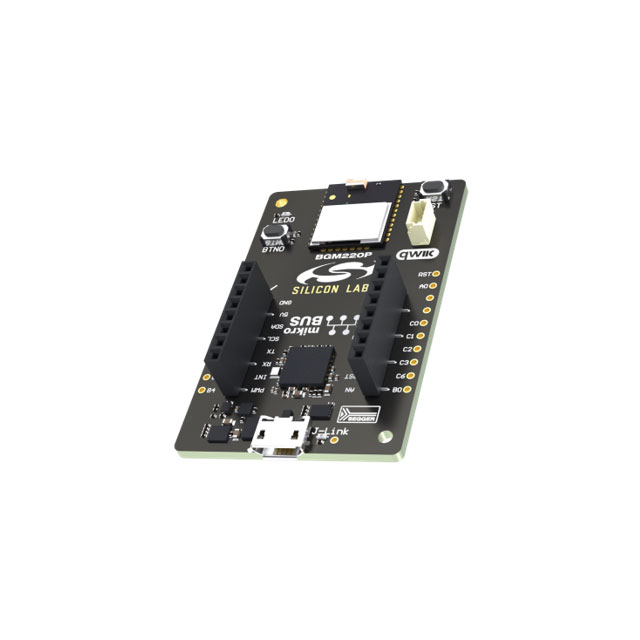

BGM220 EXPLORER KIT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

BGM220-EK4314A

Active

Silicon Labs

BGM220 EXPLORER KIT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	BGM220-EK4314A

For Use With/Related Products	EFR32BG22, BGM220P
Frequency	2.4 GHz
Supplied Contents	Board(s)

BGM220 Series

Part	Memory Size	Power - Output	Serial Interfaces	Protocol	Sensitivity	Frequency [Min]	Frequency [Max]	RF Family/Standard	Utilized IC / Part	Mounting Type	Package / Case	Antenna Type	Current - Receiving [Max]	Current - Receiving [Min]	Voltage - Supply [Min]	Voltage - Supply [Max]	Data Rate	Modulation	Operating Temperature [Max]	Operating Temperature [Min]	Current - Transmitting [Max]	Current - Transmitting [Min]	Memory Size [custom]	Memory Size [custom]	Supplied Contents	For Use With/Related Products	Frequency
Silicon Labs BGM220SC22WGA2R	32 kB 352 kB	6 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	-106.4 dBm	2.4 GHz	2.4835 GHz	Bluetooth	EFR32BG22	Surface Mount	44-SMD Module	Integrated Chip	4.8 mA	4.2 mA	1.8 V	3.8 V	2 Mbps	GFSK	85 °C	-40 °C	8.8 mA	4.6 mA
Silicon Labs BGM220PC22HNA2		8 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	-98.9 dBm	2.4 GHz	2.4835 GHz	Bluetooth	EFR32BG22	Surface Mount	31-SMD Module	Integrated Chip	4.8 mA	4.3 mA	1.8 V	3.8 V	2 Mbps	GFSK	105 °C	-40 °C	10.8 mA	4.8 mA	512 kB	32 kB
Silicon Labs BGM220-EK4314A																									Board(s)	BGM220P EFR32BG22	2.4 GHz
Silicon Labs BGM220PC22WGA2R	32 kB 352 kB	8 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	-98.9 dBm	2.4 GHz	2.4835 GHz	Bluetooth	EFR32BG22	Surface Mount	31-SMD Module	Integrated Chip	4.8 mA	4.3 mA	1.8 V	3.8 V	2 Mbps	GFSK	85 °C	-40 °C	10.8 mA	4.8 mA
Silicon Labs BGM220SC12WGA2R	32 kB 352 kB	0 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	-98.6 dBm	2.4 GHz	2.4835 GHz	Bluetooth	EFR32BG22	Surface Mount	31-SMD Module	Integrated Chip	4.8 mA	4.3 mA	1.8 V	3.8 V	2 Mbps	GFSK	85 °C	-40 °C	10.8 mA	4.8 mA
Silicon Labs BGM220SC22HNA2		6 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	-106.4 dBm	2.4 GHz	2.4835 GHz	Bluetooth	EFR32BG22	Surface Mount	44-SMD Module	Integrated Chip	4.8 mA	4.2 mA	1.8 V	3.8 V	2 Mbps	GFSK	105 °C	-40 °C	8.8 mA	4.6 mA	512 kB	32 kB
Silicon Labs BGM220PC22WGA2	32 kB 352 kB	8 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	-98.9 dBm	2.4 GHz	2.4835 GHz	Bluetooth	EFR32BG22	Surface Mount	31-SMD Module	Integrated Chip	4.8 mA	4.3 mA	1.8 V	3.8 V	2 Mbps	GFSK	85 °C	-40 °C	10.8 mA	4.8 mA
Silicon Labs BGM220SC22WGA2	32 kB 352 kB	6 dBm	ADC I2C I2S IrDA PWM SPI UART USART	Bluetooth v5.2	-106.4 dBm	2.4 GHz	2.4835 GHz	Bluetooth	EFR32BG22	Surface Mount	44-SMD Module	Integrated Chip	4.8 mA	4.2 mA	1.8 V	3.8 V	2 Mbps	GFSK	85 °C	-40 °C	8.8 mA	4.6 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 19.79
		10	$ 17.90
		25	$ 16.49
		100	$ 15.08
		250	$ 14.13
		500	$ 13.19

Description

General part information

BGM220 Series

Blue Gecko BGM220P, EFR32BG22 2.4GHz Evaluation Board

Documents

Technical documentation and resources
