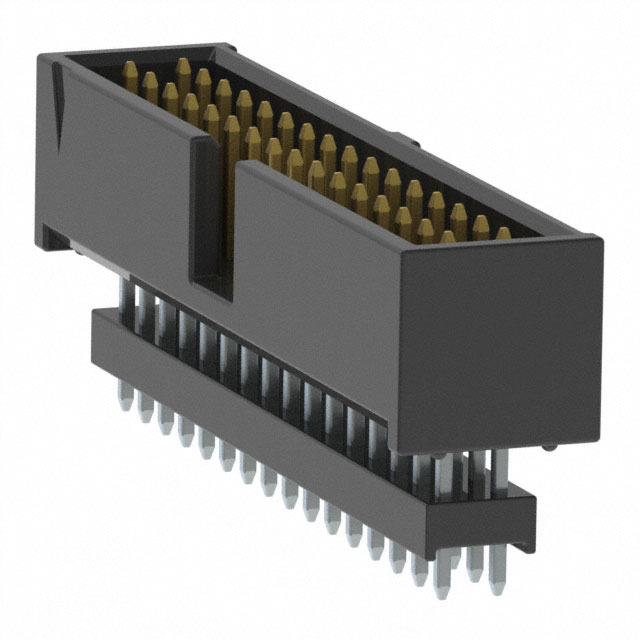

ZSS-116-01-S-D-540 - ZSS-116-01-x-D-5xx

ZSS-116-01-S-D-540

Active
Samtec Inc.

CONN HDR .100" 32POS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsZSS Datasheet.100" Shrouded Elevated Terminal Strip+1
ZSS-116-01-S-D-540 - ZSS-116-01-x-D-5xx

ZSS-116-01-S-D-540

Active
Samtec Inc.

CONN HDR .100" 32POS

Deep-Dive with AI

DocumentsZSS Datasheet.100" Shrouded Elevated Terminal Strip+1

Technical Specifications

Parameters and characteristics for this part

SpecificationZSS-116-01-S-D-540
Connector TypeElevated, Header
Contact Finish - MatingGold
Contact Finish - PostTin
Contact Finish Thickness - Mating30 Áin
Contact Finish Thickness - Mating0.76 Ám
Contact Length - Mating6.35 mm
Contact Length - Mating0.25 in
Contact Length - Post0.09 "
Contact Length - Post2.29 mm
Contact MaterialPhosphor Bronze
Contact ShapeSquare
Contact TypeMale Pin
Current Rating (Amps)3 A
Fastening TypePush-Pull
FeaturesKeying Slot
Insulation ColorBlack
Insulation Height0.54 in
Insulation Height13.72 mm
Insulation MaterialPolyester, Glass Filled
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole
Number of Positions LoadedAll
Number of Rows2
Operating Temperature [Max]125 °C
Operating Temperature [Min]-55 °C
Overall Contact Length [x]0.63 "
Overall Contact Length [x]16 mm
Pitch - Mating0.1 in
Pitch - Mating2.54 mm
Row Spacing - Mating [x]2.54 mm
Row Spacing - Mating [x]0.1 in
ShroudingShrouded - 4 Wall
StyleBoard to Board, Cable
TerminationSolder

ZSS-116 Series

PartMounting TypeInsulation MaterialFastening TypeOperating Temperature [Max]Operating Temperature [Min]Pitch - MatingPitch - MatingInsulation ColorFeaturesConnector TypeOverall Contact LengthOverall Contact LengthTerminationContact Length - PostContact Length - PostRow Spacing - Mating [x]Row Spacing - Mating [x]Number of RowsInsulation HeightInsulation HeightContact Finish - PostStyleContact TypeMaterial Flammability RatingContact ShapeContact Length - MatingContact Length - MatingContact MaterialCurrent Rating (Amps)ShroudingNumber of Positions LoadedOverall Contact Length [x]Overall Contact Length [x]Contact Finish Thickness - MatingContact Finish Thickness - MatingNumber of PositionsContact Finish - MatingContact Finish Thickness - PostContact Finish Thickness - Post
Samtec Inc.
ZSS-116-03-T-D-700
Through Hole
Polyester
Glass Filled
Push-Pull
105 ░C
-55 °C
0.1 in
2.54 mm
Black
Keying Slot
Elevated
Header
0.83 in
21.08 mm
Solder
0.13 in
3.3 mm
2.54 mm
0.1 in
2
17.78 mm
0.7 in
Tin
Board to Board
Cable
Male Pin
UL94 V-0
Square
6.35 mm
0.25 in
Phosphor Bronze
3 A
Shrouded - 4 Wall
All
Samtec Inc.
ZSS-116-02-S-D-615
Samtec Inc.
ZSS-116-01-T-D-450
Through Hole
Polyester
Glass Filled
Push-Pull
105 ░C
-55 °C
0.1 in
2.54 mm
Black
Keying Slot
Elevated
Header
Solder
0.18 in
4.57 mm
2.54 mm
0.1 in
2
11.43 mm
0.45 in
Tin
Board to Board
Cable
Male Pin
UL94 V-0
Square
6.35 mm
0.25 in
Phosphor Bronze
3 A
Shrouded - 4 Wall
All
0.63 "
16 mm
Samtec Inc.
ZSS-116-03-L-D-690
Samtec Inc.
ZSS-116-01-G-S-450
Through Hole
Polyester
Glass Filled
Push-Pull
125 °C
-55 °C
0.1 in
2.54 mm
Black
Keying Slot
Elevated
Header
Solder
0.18 in
4.57 mm
1
11.43 mm
0.45 in
Gold
Board to Board
Cable
Male Pin
UL94 V-0
Square
6.35 mm
0.25 in
Phosphor Bronze
3 A
Shrouded - 4 Wall
All
0.63 "
16 mm
10 çin
0.25 çm
16
Gold
3 µin
0.076 µm
Samtec Inc.
ZSS-116-02-L-D-570
Through Hole
Polyester
Glass Filled
Push-Pull
125 °C
-55 °C
0.1 in
2.54 mm
Black
Keying Slot
Elevated
Header
0.73 in
18.54 mm
Solder
0.16 in
4.06 mm
2.54 mm
0.1 in
2
14.48 mm
0.57 in
Tin
Board to Board
Cable
Male Pin
UL94 V-0
Square
6.35 mm
0.25 in
Phosphor Bronze
3 A
Shrouded - 4 Wall
All
10 çin
0.25 çm
Gold
Samtec Inc.
ZSS-116-04-T-D-840
Samtec Inc.
ZSS-116-01-S-D-540
Through Hole
Polyester
Glass Filled
Push-Pull
125 °C
-55 °C
0.1 in
2.54 mm
Black
Keying Slot
Elevated
Header
Solder
0.09 "
2.29 mm
2.54 mm
0.1 in
2
13.72 mm
0.54 in
Tin
Board to Board
Cable
Male Pin
UL94 V-0
Square
6.35 mm
0.25 in
Phosphor Bronze
3 A
Shrouded - 4 Wall
All
0.63 "
16 mm
30 Áin
0.76 Ám
Gold
Samtec Inc.
ZSS-116-03-L-D-665
Samtec Inc.
ZSS-116-01-L-D-460

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 6.26
25$ 5.66
50$ 5.26
100$ 5.01
500$ 4.67

Description

General part information

ZSS-116 Series

Connector Header Through Hole 32 position 0.100" (2.54mm)
