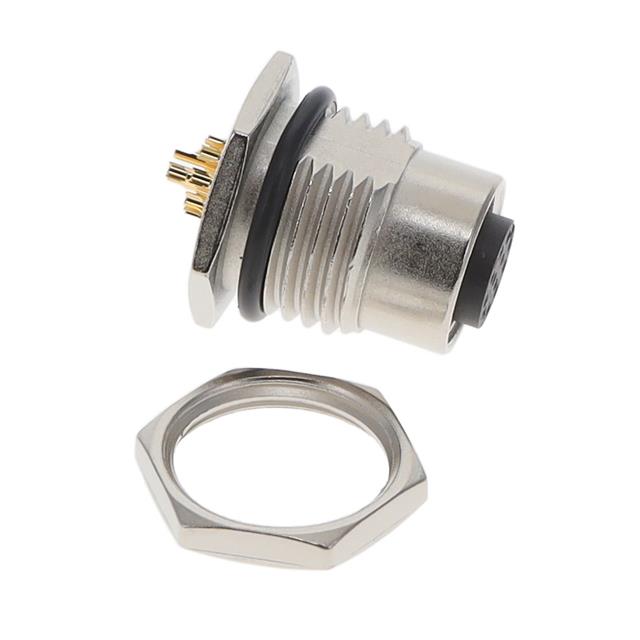

M12A-12PFFS-SF8002

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 12 PINS, FEMALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, M16*1.5, SCREW THREAD

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, M12, A CODE, METAL, 1.5A, 12 PINS, FEMALE CONNECTOR, FEMALE CONTACT, HEXAGONAL, M16*1.5, SCREW THREAD

Technical Specifications

Parameters and characteristics for this part

Specification	M12A-12PFFS-SF8002

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	1.5 A
Ingress Protection	IP68, IP69K
Insert Material	Polyamide (PA), Nylon, Glass Filled
Mounting Feature	Bulkhead - Rear Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M12-12
Shielding	Shielded
Voltage Rating	30 VAC

Part	Shell Finish	Primary Material	Orientation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Mounting Feature	Connector Type	Ingress Protection	Shell Size - Insert	Voltage Rating	Shielding	Color	Shell Material	Insert Material	Current Rating (Amps)	Number of Positions	Contact Finish - Mating	Termination
Amphenol LTW M12A-12PFFS-SH8001	Nickel	Metal	A	Copper Alloy	-40 °C	105 ░C	Panel Mount Through Hole	Bulkhead - Rear Side Nut	Receptacle Female Sockets	IP68 IP69K	M12-12	30 VAC	Shielded	Silver	Zinc Alloy	Polyamide (PA) Nylon Glass Filled	1.5 A	12	Gold
Amphenol LTW M12A-12PFFS-SF8B15	Nickel	Metal	A	Copper Alloy	-25 °C	85 °C		Bulkhead - Front Side Nut	Receptacle Female Sockets	IP68 IP69K	M12-12	30 VAC	Shielded	Silver	Zinc Alloy	Polyamide (PA) Nylon Glass Filled	1.5 A	12	Gold	Wire Leads
Amphenol LTW M12A-12PFFS-SF8C15	Nickel	Metal	A	Copper Alloy	-25 °C	85 °C		Bulkhead - Front Side Nut	Receptacle Female Sockets	IP68 IP69K	M12-12	30 VAC	Shielded	Silver	Zinc Alloy	Polyamide (PA) Nylon Glass Filled	1.5 A	12	Gold	Wire Leads
Amphenol LTW M12A-12PFFS-SF8002	Nickel	Metal	A	Copper Alloy	-40 °C	105 ░C	Panel Mount Through Hole	Bulkhead - Rear Side Nut	Receptacle Female Sockets	IP68 IP69K	M12-12	30 VAC	Shielded	Silver	Zinc Alloy	Polyamide (PA) Nylon Glass Filled	1.5 A	12	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Circular Connector Receptacle, Female Sockets Solder Cup
