28546.4
ActiveConta-Clip, Inc.

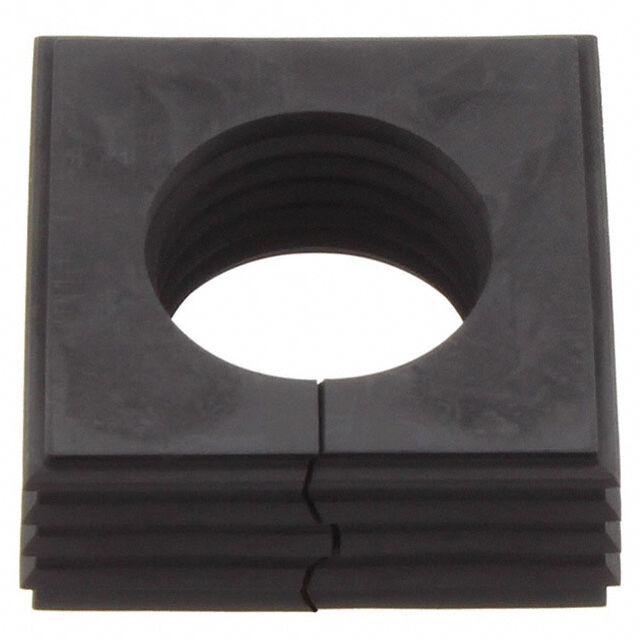

KDS LARGE SEALING SLEEVE 26MM
Deep-Dive with AI
Search across all available documentation for this part.
28546.4
ActiveConta-Clip, Inc.
KDS LARGE SEALING SLEEVE 26MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 28546.4 |
|---|---|
| Bushing, Grommet Type | Frame Grommet, Split |
| Color | Black |
| Diameter - Inside [Max] [diameter] | 1.024 in |
| Diameter - Inside [Max] [diameter] | 26 mm |
| Diameter - Inside [Min] [diameter] | 25 mm |
| Diameter - Inside [Min] [diameter] | 0.984 " |
| Features | IP66 - Dust Tight, Water Resistant |
| For Use With/Related Products | Wires, Cable |
| Material | Thermoplastic Elastomer (TPE) |
| Material Flammability Rating | UL94 HB |
| Panel Cutout Dimensions | 42.8 mm |
| Panel Cutout Dimensions [custom] | 1.685 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 2.13 | |
| 5 | $ 2.02 | |||
| 10 | $ 1.97 | |||
| 30 | $ 1.92 | |||
| 50 | $ 1.88 | |||
Description
General part information
28546 Series
Square - 1.685" (42.80mm) Frame Grommet, Split 0.984" ~ 1.024" (25.00mm ~ 26.00mm) Black
Documents
Technical documentation and resources
No documents available
