680M9W4203L201

Active

MH Connectors

COMBINATION D SUB CONNECTOR, 680M SERIES, DB-9W4, RECEPTACLE, 5, 4, SOLDER ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

MH Connectors

COMBINATION D SUB CONNECTOR, 680M SERIES, DB-9W4, RECEPTACLE, 5, 4, SOLDER ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	680M9W4203L201

Connector Style	D-Sub, Combo
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal and Power
Current Rating (Amps)	5 A, 20 A
Dielectric Material	Polybutylene Terephthalate (PBT)
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Positions [custom]	4
Number of Positions [custom]	5
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Material, Finish	Nickel Plated, Steel
Shell Size, Connector Layout	3 (DB, B) - 9W4

Part	Current Rating (Amps)	Dielectric Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Shell Material, Finish	Connector Style	Number of Positions [custom]	Number of Positions [custom]	Number of Positions	Connector Type	Contact Type	Contact Finish	Shell Size, Connector Layout	Number of Rows	Contact Material	Flange Feature
MH Connectors 680M9W4203L201	5 A 20 A	Polybutylene Terephthalate (PBT)	UL94 V-0	-55 °C	125 °C	Flash	Nickel Plated Steel	Combo D-Sub	4	5	9	Receptacle Female Sockets	Signal and Power	Gold	3 (DB B) - 9W4	2	Copper Alloy	Housing/Shell (Unthreaded)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

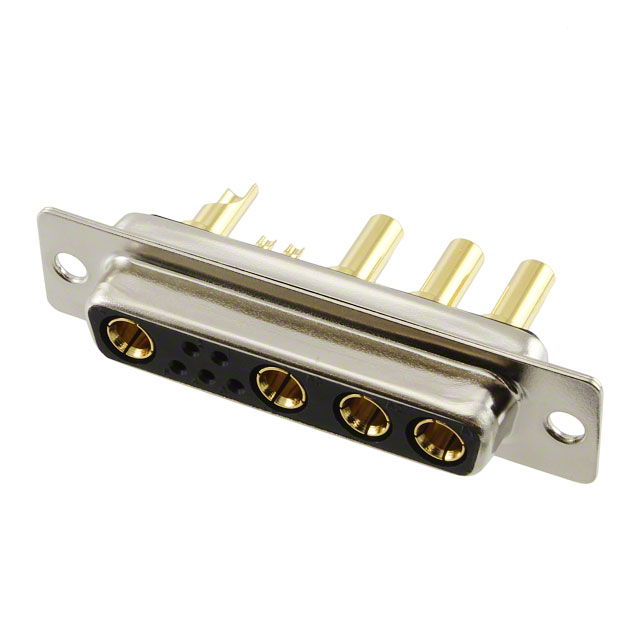

9 (5 + 4 Power) Position D-Sub, Combo Receptacle, Female Sockets Connector
