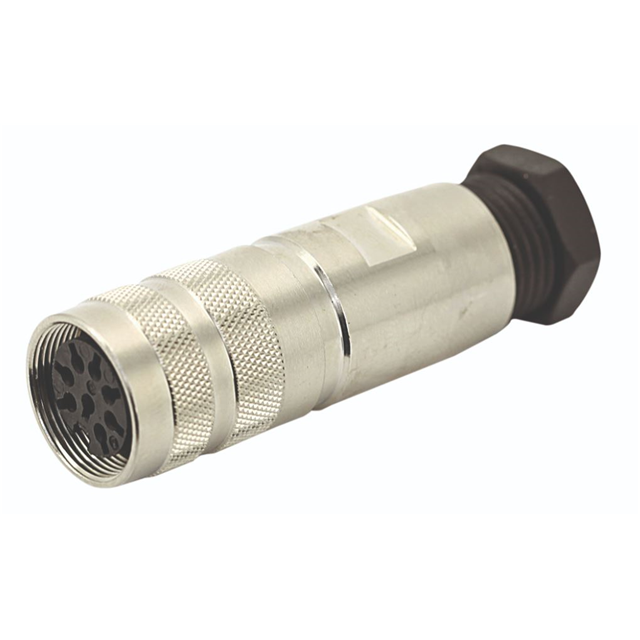

C091 11D107 001 2

Obsolete

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 7POS INLINE

Search across all available documentation for this part.

Obsolete

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 7POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C091 11D107 001 2

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Silver
Includes	2 pc Cable Clamp, 1 Cable Nut, 2 Washers, 1 Gasket, 1 Backshell, 11 pcs - 1 Connector, 1 O-Ring, 2 Screws
Ingress Protection	IP69K, IP65, IP67
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	7
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Finish	Nickel
Shell Material	Die Cast
Shell Size - Insert	M16-7B
Shielding	Shielded
Type	For Female Sockets

Part	Shell Material	Contact Size	Operating Temperature [Max]	Operating Temperature [Min]	Orientation	Type	Contact Shape	Shell Size - Insert	Ingress Protection	Note	Features	Mounting Type	Shielding	Number of Positions	Insert Material	Housing Color	Includes	Connector Type	Material Flammability Rating	Shell Finish	Contact Type
Amphenol Tuchel Industrial C091 11D107 001 2	Die Cast	1.5 mm	100 °C	-40 °C	Keyed	For Female Sockets	Circular	M16-7B	IP65 IP67 IP69K	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Shielded	7	Thermoplastic	Silver	1 Backshell 1 Cable Nut 1 Gasket 1 O-Ring 11 pcs - 1 Connector 2 pc Cable Clamp 2 Screws 2 Washers	Plug Housing	UL94 V-0	Nickel	Crimp
Amphenol Tuchel Industrial C091 11D107 000 2	Die Cast	1.5 mm	100 °C	-40 °C	Keyed	For Female Sockets	Circular	M16-7B	IP65 IP67 IP69K	Contacts Not Included	Backshell Cable Clamp Coupling Nut	Free Hanging (In-Line)	Shielded	7	Thermoplastic	Silver	1 Backshell 1 Cable Nut 1 Gasket 1 O-Ring 11 pcs - 1 Connector 2 pc Cable Clamp 2 Screws 2 Washers	Plug Housing	UL94 V-0	Nickel	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

7 Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
