T0052922399N

Active

Apex Tool Group

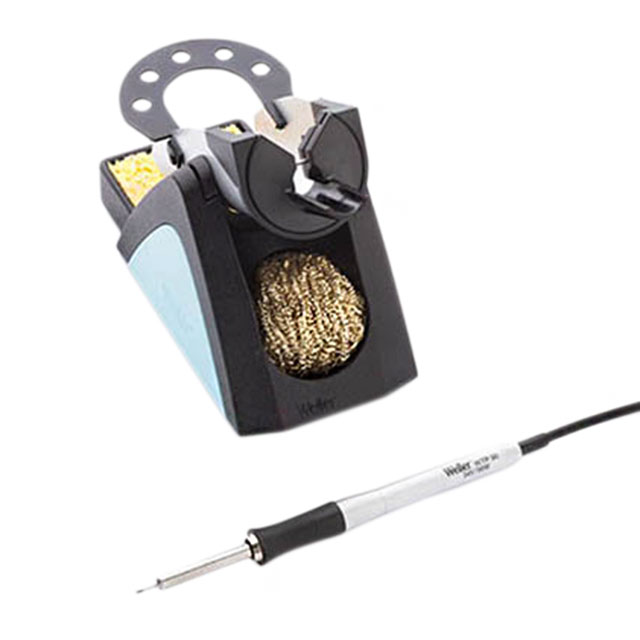

SOLDERING IRON 90W 24V

Search across all available documentation for this part.

Active

Apex Tool Group

SOLDERING IRON 90W 24V

Technical Specifications

Parameters and characteristics for this part

Specification	T0052922399N

For Use With/Related Products	WT1
Power (Watts)	90 W
Tip Diameter [diameter]	2.4 mm
Tip Diameter [diameter]	0.09 in
Tip Temperature [Max]	850 °F, 842 °F
Tip Temperature [Min]	50 °C, 150 °F
Tip Type	XNTB
Type	Iron
Voltage - Input	24 V
Workstand	WSR200

Part	Power (Watts)	Tip Type	Voltage - Input	Tip Temperature [Max]	Tip Temperature [Min]	Tip Diameter [diameter]	Tip Diameter [diameter]	For Use With/Related Products	Workstand	Type
Apex Tool Group T0052922399N	90 W	XNTB	24 V	842 °F 850 °F	50 °C 150 °F	2.4 mm	0.09 in	WT1	WSR200	Iron
Apex Tool Group T0052922599N

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 311.00

General part information

Iron 90W 24V

Technical documentation and resources
