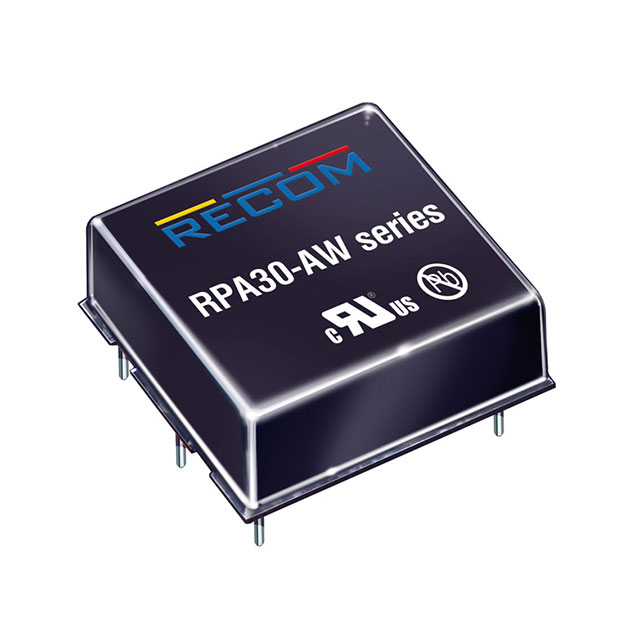

RPA30-2415SAW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 9-36VIN 15VOUT 2A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RPA30-2415SAW/P

Active

RECOM Power

ISOLATED DC/DC CONVERTERS - THROUGH HOLE 30W 9-36VIN 15VOUT 2A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RPA30-2415SAW/P

Applications	Railway, ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	2 A
Efficiency	88 %
Features	OCP, UVLO, OTP, Remote On/Off, SCP, OVP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 C
Operating Temperature [Min]	-40 °C
Package / Case	6-DIP Module
Power (Watts)	30 W
Size / Dimension [x]	1 in
Size / Dimension [x]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [y]	25.4 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.6 kV
Voltage - Output 1	15 V

RPA30-243.3 Series

Isolated DC/DC Converters - Through Hole 30W 9-36Vin +/-12Vout 1.25A

Part	Voltage - Input (Max) [Max]	Power (Watts)	Type	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Number of Outputs	Features	Package / Case	Package / Case	Voltage - Output 1	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Efficiency	Current - Output (Max) [Max]	Control Features	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2
RECOM Power RPA30-243.3SAW-HC	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	1	OCP OTP OVP SCP UVLO	5 Leads	6-DIP Module	3.3 V	ITE (Commercial) Railway	-40 °C	105 C	88 %	7.5 A
RECOM Power RPA30-2415SAW/P	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	1	OCP OTP OVP Remote On/Off SCP UVLO		6-DIP Module	15 V	ITE (Commercial) Railway	-40 °C	105 C	88 %	2 A	Active High Enable	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
RECOM Power RPA30-2415DAW/N	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	2	OCP OTP OVP Remote On/Off SCP UVLO		6-DIP Module	15 V	ITE (Commercial) Railway	-40 °C	105 C	88 %		Active Low Enable	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm	1 A	1 A	-15 V
RECOM Power RPA30-2415SAW-HC	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	1	OCP OTP OVP SCP UVLO	5 Leads	6-DIP Module	15 V	ITE (Commercial) Railway	-40 °C	105 C	88 %	2 A
RECOM Power RPA30-2405SAW-HC	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	1	OCP OTP OVP SCP UVLO	5 Leads	6-DIP Module	5 V	ITE (Commercial) Railway	-40 °C	105 C	89 %	6 A
RECOM Power RPA30-243.3SAW/P	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	1	OCP OTP OVP Remote On/Off SCP UVLO		6-DIP Module	3.3 V	ITE (Commercial) Railway	-40 °C	105 C	88 %	7.5 A	Active High Enable	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
RECOM Power RPA30-2415DAW/P-HC	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	2	OCP OTP OVP Remote On/Off SCP UVLO		6-DIP Module	15 V	ITE (Commercial) Railway	-40 °C	105 C	88 %		Active High Enable							1 A	1 A	-15 V
RECOM Power RPA30-2412SAW/N	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	1	OCP OTP OVP Remote On/Off SCP UVLO		6-DIP Module	12 V	ITE (Commercial) Railway	-40 °C	105 C	88 %	2.5 A	Active Low Enable	0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm
RECOM Power RPA30-2415DAW-HC	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	2	OCP OTP OVP SCP UVLO	5 Leads	6-DIP Module	15 V	ITE (Commercial) Railway	-40 °C	105 C	88 %									1 A	1 A	-15 V
RECOM Power RPA30-2415SAW	36 V	30 W	Isolated Module	Through Hole	9 V	1.6 kV	1	OCP OTP OVP SCP UVLO	5 Leads	6-DIP Module	15 V	ITE (Commercial) Railway	-40 °C	105 C	88 %	2 A		0.4 "	25.4 mm	1 in	25.4 mm	25.4 mm	10.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 54.86
		5	$ 52.77
		10	$ 52.35
		25	$ 50.69
		50	$ 48.20
		100	$ 44.87
Sager	N/A	1	$ 54.86
		5	$ 51.42
		10	$ 48.40
		25	$ 45.09
		50	$ 43.30
		100	$ 42.19
		250	$ 40.15

Description

General part information

RPA30-243.3 Series

Isolated DC/DC Converters - Through Hole 30W 9-36Vin +/-12Vout 1.25A
