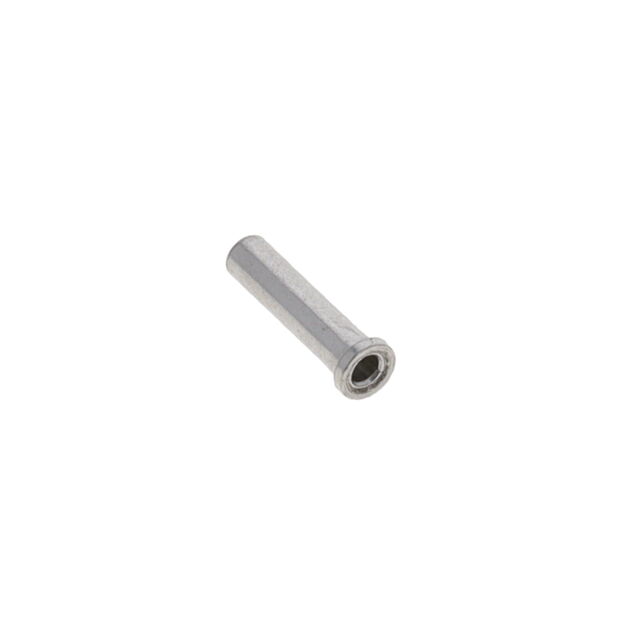

0295-0-15-80-06-80-10-0

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN PIN RCPT

Technical Specifications

Parameters and characteristics for this part

Specification	0295-0-15-80-06-80-10-0

Contact Finish	Tin
Contact Finish Thickness	200 Áin
Contact Finish Thickness	5.08 Ám
Contact Material	Beryllium Copper
Flange Diameter [diameter]	1.96 mm
Flange Diameter [diameter]	0.077 in
Length - Overall [x]	6.58 mm
Length - Overall [x]	0.259 in
Mounting Hole Diameter [diameter]	1.6 mm
Mounting Hole Diameter [diameter]	0.063 in
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pin Hole Diameter [diameter]	0.051 in
Pin Hole Diameter [diameter]	1.3 mm
Socket Depth	0.233 in
Socket Depth	5.92 mm
Tail Type	No Tail
Termination	Solder

Part	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Contact Finish Thickness	Contact Finish Thickness	Flange Diameter [diameter]	Flange Diameter [diameter]	Socket Depth	Socket Depth	Tail Type	Contact Material	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Termination	Contact Finish	Operating Temperature [Min]	Operating Temperature [Max]	Length - Overall [x]	Length - Overall [x]
Mill-Max Manufacturing Corp. 0295-0-15-80-06-80-10-0	1.6 mm	0.063 in	200 Áin	5.08 Ám	1.96 mm	0.077 in	0.233 in	5.92 mm	No Tail	Beryllium Copper	0.051 in	1.3 mm	Solder	Tin	-55 °C	125 °C	6.58 mm	0.259 in
Mill-Max Manufacturing Corp. 0295-0-15-01-06-27-10-0	1.6 mm	0.063 in	30 Áin	0.76 Ám	1.96 mm	0.077 in	0.233 in	5.92 mm	No Tail	Beryllium Copper	0.051 in	1.3 mm	Solder	Gold	-55 °C	125 °C	6.58 mm	0.259 in
Mill-Max Manufacturing Corp. 0295-0-15-01-06-14-10-0	1.6 mm	0.063 in	10 Áin	0.25 Ám	1.96 mm	0.077 in	0.233 in	5.92 mm	No Tail	Beryllium Copper	0.051 in	1.3 mm	Solder	Gold	-55 °C	125 °C	6.58 mm	0.259 in
Mill-Max Manufacturing Corp. 0295-0-15-01-06-01-10-0	1.6 mm	0.063 in	200 Áin	5.08 Ám	1.96 mm	0.077 in	0.233 in	5.92 mm	No Tail	Beryllium Copper	0.051 in	1.3 mm	Solder	Tin-Lead	-55 °C	125 °C	6.58 mm	0.259 in
Mill-Max Manufacturing Corp. 0295-0-15-80-06-27-10-0	1.6 mm	0.063 in	30 Áin	0.76 Ám	1.96 mm	0.077 in	0.233 in	5.92 mm	No Tail	Beryllium Copper	0.051 in	1.3 mm	Solder	Gold	-55 °C	125 °C	6.58 mm	0.259 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pin Receptacle Connector 0.022" ~ 0.032" (0.56mm ~ 0.81mm) No Tail Solder
