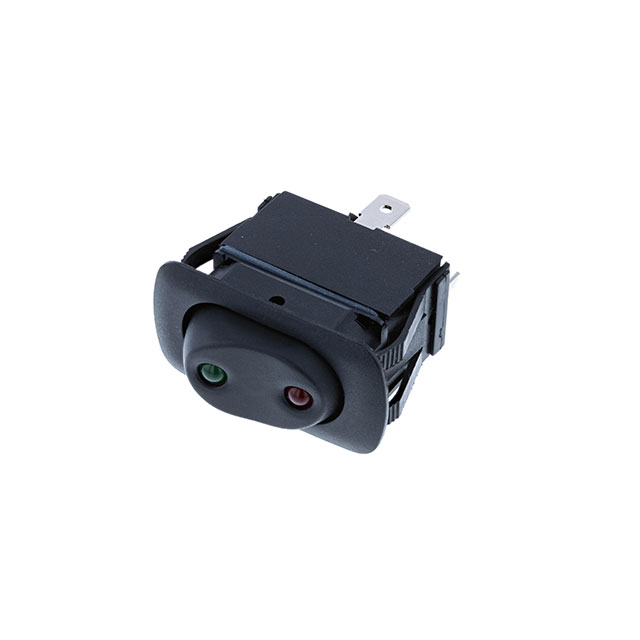

SRA2-1D-DC-1-RG

Active

Switch Components

SWITCH ROCKER SPDT 21A 14V

Search across all available documentation for this part.

Active

Switch Components

SWITCH ROCKER SPDT 21A 14V

Technical Specifications

Parameters and characteristics for this part

Specification	SRA2-1D-DC-1-RG

Actuator Marking	No Marking
Actuator Type	Oval - Illuminated
Approval Agency	CSA, cURus, ENEC
Circuit	SPDT
Color - Actuator/Cap	Black
Current Rating (Amps)	21 A
Electrical Life	6000 Cycles
Illumination Type, Color	Green/Red, LED
Illumination Voltage (Nominal)	14 VDC
Ingress Protection	IP56 - Dust Protected, Water Resistant
Mechanical Life	10000 Steps
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.6 mm
Panel Cutout Dimensions [y]	21.2 mm
Switch Function	On-On
Termination Style	Quick Connect - 0.250" (6.3mm)
Voltage Rating - DC	14 V

Part	Illumination Type, Color	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Illumination Voltage (Nominal)	Switch Function	Voltage Rating - DC	Termination Style	Electrical Life	Mounting Type	Actuator Marking	Color - Actuator/Cap	Mechanical Life	Circuit	Approval Agency	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Actuator Type
Switch Components SRA2-1D-DC-1-RG	Green/Red LED	21.2 mm	36.6 mm	14 VDC	On-On	14 V	Quick Connect - 0.250" (6.3mm)	6000 Cycles	Panel Mount Snap-In	No Marking	Black	10000 Steps	SPDT	CSA cURus ENEC	21 A	85 °C	-20 C	IP56 - Dust Protected Water Resistant	Oval - Illuminated

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.39

General part information

Rocker Switch SPDT 21A (DC) Panel Mount, Snap-In
