XDUR14A4-1A

Active

SunLED

DISP 7SEG 0.56" QUAD RED 12DIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

XDUR14A4-1A

Active

SunLED

DISP 7SEG 0.56" QUAD RED 12DIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	XDUR14A4-1A

Color	Red
Common Pin	Common Anode
Current - Test	10 mA
Digit/Alpha Size	0.56 in
Digit/Alpha Size	14.22 mm
Display Type	7-Segment
Millicandela Rating	2 mcd
Number of Characters	4
Package / Case	15.24 mm
Package / Case	0.6 in
Package / Case	12-DIP
Power Dissipation (Max) [Max]	75 mw
Size / Dimension [x]	0.748 in
Size / Dimension [x]	19 mm
Size / Dimension [y]	50.3 mm
Size / Dimension [y]	1.98 in
Size / Dimension [z]	0.319 in
Size / Dimension [z]	8.1 mm
Voltage - Forward (Vf) (Typ)	1.9 V
Wavelength - Peak	627 nm

XDUR14 Series

Part	Common Pin	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Digit/Alpha Size	Digit/Alpha Size	Package / Case	Package / Case	Package / Case	Color	Number of Characters	Millicandela Rating	Display Type	Power Dissipation (Max) [Max]	Wavelength - Peak	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Package / Case
SunLED XDUR14A4-1A	Common Anode	10 mA	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	0.56 in	14.22 mm	15.24 mm	0.6 in	12-DIP	Red	4	2 mcd	7-Segment	75 mw	627 nm	1.9 V
SunLED XDUR14C4-1A	Common Cathode	10 mA	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	0.56 in	14.22 mm	15.24 mm	0.6 in	12-DIP	Red	4	2 mcd	7-Segment	75 mw	627 nm	1.9 V
SunLED XDUR14A	Common Anode	10 mA	12.7 mm	0.75 in	0.5 in	0.315 "	8 mm	19.05 mm	0.56 in	14.22 mm	15.24 mm	0.6 in	10-DIP	Red			7-Segment	75 mw	627 nm	1.9 V	1
SunLED XDUR14C4-A	Common Cathode	10 mA	50.3 mm	0.748 in	1.98 in	0.319 in	8.1 mm	19 mm	0.56 in	14.22 mm	15.24 mm	0.6 in	12-DIP	Red	4	2 mcd	7-Segment	75 mw	627 nm	1.9 V
SunLED XDUR14A2	Common Anode	10 mA	25 mm	0.75 in	0.984 in	0.325 "	8.25 mm	19.05 mm	0.56 in	14.22 mm	0.6 in		18-DIP	Red	2	7.99 mcd	7-Segment	75 mw	627 nm	1.9 V		15.24 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	2000	$ 3.11

Description

General part information

XDUR14 Series

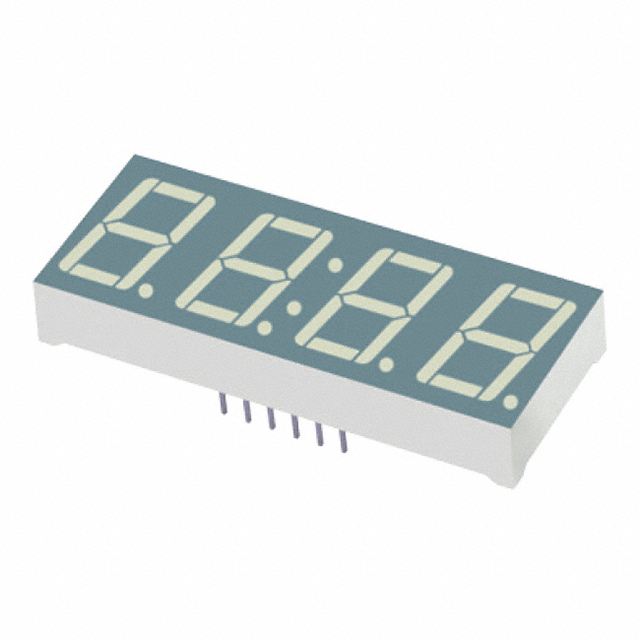

Display Modules - LED Character and Numeric Red 7-Segment 4 Character Common Anode 1.9V 10mA 0.748" H x 1.980" W x 0.319" D (19.00mm x 50.30mm x 8.10mm) 12-DIP (0.600", 15.24mm)
