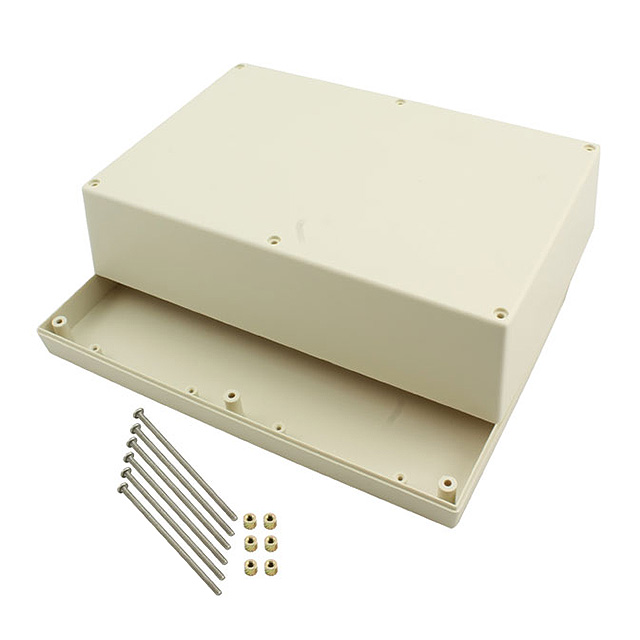

194R,AL

Active

Serpac

BOX ABS ALMOND 9.5"L X 6.34"W

Search across all available documentation for this part.

Active

Serpac

BOX ABS ALMOND 9.5"L X 6.34"W

Technical Specifications

Parameters and characteristics for this part

Specification	194R,AL

Area (L x W)	60.2 in²
Area (L x W)	388 cm²
Color	Almond
Container Type	Box
Design	Split Sides, Hand Held
Features	Front Access, PCB Supports
Height [z]	76.2 mm
Height [z]	3 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension	161.04 mm, 241.3 mm
Size / Dimension [x]	9.5 "
Size / Dimension [y]	6.34 "
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.76 lb
Weight	344.73 g

Part	Color	Container Type	Material Flammability Rating	Design	Material	Features	Ratings	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension	Weight	Weight	Height [z]	Height [z]	Area (L x W)	Area (L x W)	Thickness	Thickness
Serpac 194RI,GY	Gray	Box	UL94 HB	Hand Held Split Sides	Plastic ABS	Front Access PCB Supports	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	0.76 lb	344.73 g	76.2 mm	3 in	60.2 in²	388 cm²	2.54 mm	0.1 in
Serpac 194R,AL	Almond	Box	UL94 HB	Hand Held Split Sides	Plastic ABS	Front Access PCB Supports	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	0.76 lb	344.73 g	76.2 mm	3 in	60.2 in²	388 cm²	2.54 mm	0.1 in
Serpac 194R,GY	Gray	Box	UL94 HB	Hand Held Split Sides	Plastic ABS	Front Access PCB Supports	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	0.76 lb	344.73 g	76.2 mm	3 in	60.2 in²	388 cm²	2.54 mm	0.1 in
Serpac 194R,BK	Black	Box	UL94 HB	Hand Held Split Sides	Plastic ABS	Front Access PCB Supports	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	0.76 lb	344.73 g	76.2 mm	3 in	60.2 in²	388 cm²	2.54 mm	0.1 in
Serpac 194RI,AL	Almond	Box	UL94 HB	Hand Held Split Sides	Plastic ABS	Front Access PCB Supports	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	0.76 lb	344.73 g	76.2 mm	3 in	60.2 in²	388 cm²	2.54 mm	0.1 in
Serpac 194RI,BK	Black	Box	UL94 HB	Hand Held Split Sides	Plastic ABS	Front Access PCB Supports	IP40 NEMA 1	9.5 "	6.34 "	161.04 mm 241.3 mm	0.76 lb	344.73 g	76.2 mm	3 in	60.2 in²	388 cm²	2.54 mm	0.1 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, ABS Almond Hand Held, Split Sides 9.500" L x 6.340" W (241.30mm x 161.04mm) X 3.000" (76.20mm)
