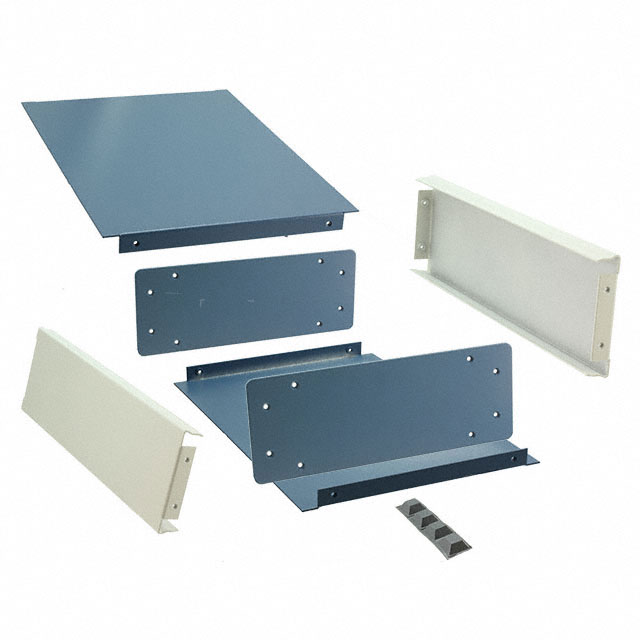

UPS 525-14-7-BLUE/WHITE

Active

LMB Heeger Inc.

CABINET ALUM 13.75"L X 6.88"W

Search across all available documentation for this part.

Active

LMB Heeger Inc.

CABINET ALUM 13.75"L X 6.88"W

Technical Specifications

Parameters and characteristics for this part

Specification	UPS 525-14-7-BLUE/WHITE

Area (L x W)	610 cm˛
Area (L x W)	94.5 in˛
Color	Blue, White
Container Type	Cabinet
Design	End Panel(s)
Features	Separate Panel or Cover Thickness
Height [z]	128.6 mm
Height [z]	5.063 in
Material	Metal, Aluminum
Size / Dimension [x]	13.75 "
Size / Dimension [x]	349.25 mm
Size / Dimension [y]	174.63 mm
Size / Dimension [y]	6.875 in
Thickness	0.063 "
Thickness	1.6 mm

Part	Height [z]	Height [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Area (L x W)	Area (L x W)	Thickness	Thickness	Material	Color	Design	Container Type	Features
LMB Heeger Inc. UPS 525-14-7-BLUE/WHITE	128.6 mm	5.063 in	13.75 "	174.63 mm	349.25 mm	6.875 in	610 cm˛	94.5 in˛	0.063 "	1.6 mm	Aluminum Metal	Blue White	End Panel(s)	Cabinet	Separate Panel or Cover Thickness
LMB Heeger Inc. UPS 525-17-9 PLAIN	128.6 mm	5.063 in	16.75 "	225.43 mm	425.45 mm	8.875 "	961 cm˛	149 in˛	0.063 "	1.6 mm	Aluminum Metal	Unpainted	End Panel(s)	Cabinet	Separate Panel or Cover Thickness
LMB Heeger Inc. UPS 525-14-7 PLAIN	128.6 mm	5.063 in	13.75 "	174.63 mm	349.25 mm	6.875 in	610 cm˛	94.5 in˛	0.063 "	1.6 mm	Aluminum Metal	Unpainted	End Panel(s)	Cabinet	Separate Panel or Cover Thickness
LMB Heeger Inc. UPS 525-17-12 PLAIN	128.6 mm	5.063 in	16.75 "	301.63 mm	425.45 mm	11.875 in	1284 cm˛	199 in˛	0.063 "	1.6 mm	Aluminum Metal	Unpainted	End Panel(s)	Cabinet	Separate Panel or Cover Thickness

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cabinet Metal, Aluminum Blue, White End Panel(s) 13.750" L x 6.875" W (349.25mm x 174.63mm) X 5.063" (128.60mm)
