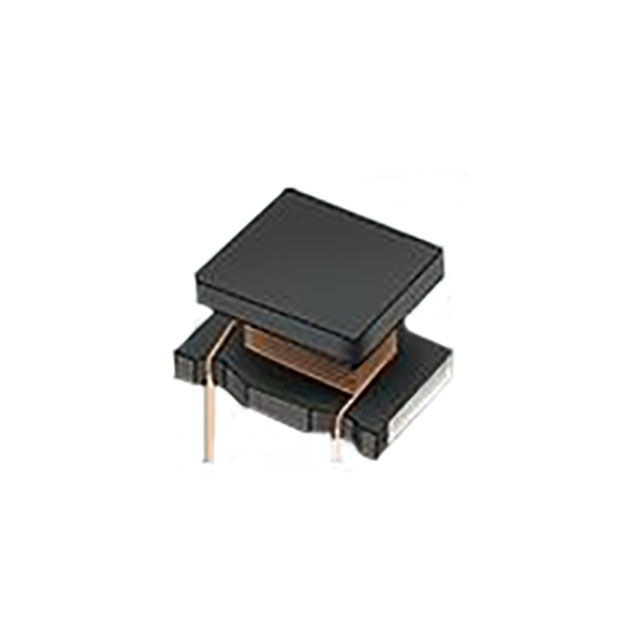

LQH32NZ3R3K23L

Active

Murata Power Solutions Inc.

FIXED IND 3.3UH 300MA 1 OHM SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LQH32NZ3R3K23x Datasheet

LQH32NZ3R3K23L

Active

Murata Power Solutions Inc.

FIXED IND 3.3UH 300MA 1 OHM SMD

Deep-Dive with AI

DocumentsDatasheet LQH32NZ3R3K23x Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LQH32NZ3R3K23L

Current Rating (Amps)	300 mA
DC Resistance (DCR) [Max]	1 Ohm
Frequency - Self Resonant	38 MHz
Height - Seated (Max) [Max] [z]	0.087 in
Height - Seated (Max) [Max] [z]	2.2 mm
Inductance	3.3 µH
Inductance Frequency - Test	1 MHz
Material - Core	Ferrite
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	1210
Package / Case	3225 Metric
Q @ Freq	20, 1 MHz
Ratings	AEC-Q200
Shielding	Unshielded
Size / Dimension [x]	3.2 mm
Size / Dimension [x]	0.126 in
Size / Dimension [y]	2.5 mm
Size / Dimension [y]	0.098 in
Supplier Device Package	1210
Tolerance	10 %
Type	Wirewound, Drum Core

LQH32NZ Series

Part	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Inductance Frequency - Test	Q @ Freq	Type	DC Resistance (DCR)	Frequency - Self Resonant	Current Rating (Amps)	Ratings	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Material - Core	Supplier Device Package	Tolerance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Package / Case	Inductance	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Murata Power Solutions Inc. LQH32NZ180J23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 35	Drum Core Wirewound	2.5 Ohm	15 MHz	0.165 A	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	5 %	0.087 in	2.2 mm	1210	3225 Metric	18 µH
Murata Power Solutions Inc. LQH32NZ1R2K23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 20	Drum Core Wirewound		100 MHz	425 mA	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	10 %	0.087 in	2.2 mm	1210	3225 Metric	1.2 µH
Murata Power Solutions Inc. LQH32NZ8R2K23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 20	Drum Core Wirewound		23 MHz		AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	10 %	0.087 in	2.2 mm	1210	3225 Metric	8.2 µH	1.6 Ohm
Murata Power Solutions Inc. LQH32NZ150J23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 35	Drum Core Wirewound		16 MHz	0.17 A	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	5 %	0.087 in	2.2 mm	1210	3225 Metric	15 µH	2.2 Ohm
Murata Power Solutions Inc. LQH32NZ3R3K23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 20	Drum Core Wirewound		38 MHz	300 mA	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	10 %	0.087 in	2.2 mm	1210	3225 Metric	3.3 µH	1 Ohm
Murata Power Solutions Inc. LQH32NZ220J23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 35	Drum Core Wirewound		14 MHz	150 mA	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	5 %	0.087 in	2.2 mm	1210	3225 Metric	22 µH	2.8 Ohm
Murata Power Solutions Inc. LQH32NZ3R9K23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 20	Drum Core Wirewound		35 MHz	0.29 A	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	10 %	0.087 in	2.2 mm	1210	3225 Metric	3.9 µH	1.1 Ohm
Murata Power Solutions Inc. LQH32NZ2R2K23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 20	Drum Core Wirewound		50 MHz	370 mA	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	10 %	0.087 in	2.2 mm	1210	3225 Metric	2.2 µH	800 mOhm
Murata Power Solutions Inc. LQH32NZ391J23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz		Drum Core Wirewound	22 Ohm	5 MHz	50 mA	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	5 %	0.087 in	2.2 mm	1210	3225 Metric	390 µH		796 kHz	50
Murata Power Solutions Inc. LQH32NZ390J23L	Surface Mount	3.2 mm	2.5 mm	0.126 in	0.098 in	1 MHz	1 MHz 40	Drum Core Wirewound		11 MHz	110 mA	AEC-Q200	-40 °C	105 ░C	Unshielded	Ferrite	1210	5 %	0.087 in	2.2 mm	1210	3225 Metric	39 µH	3.9 Ohm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.34
	Digi-Reel®	1	$ 0.34
	Tape & Reel (TR)	2000	$ 0.14

Description

General part information

LQH32NZ Series

3.3 µH Unshielded Drum Core, Wirewound Inductor 300 mA 1Ohm Max 1210 (3225 Metric)
