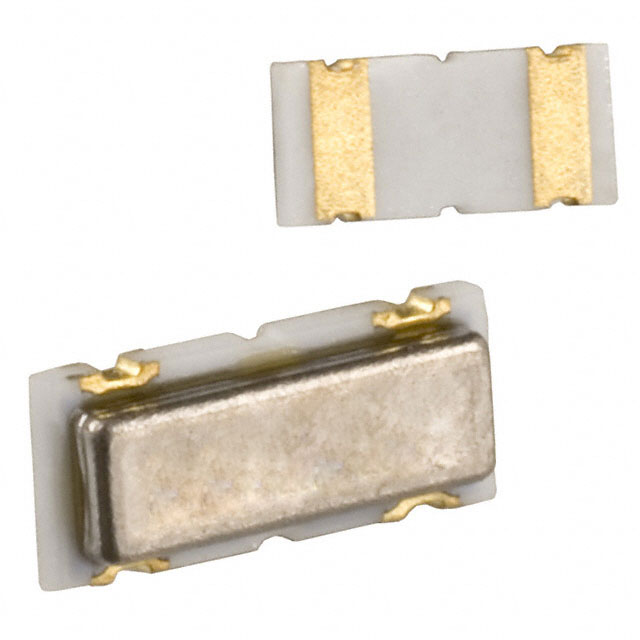

CDSCB10M7GA105A-R0

Active

Murata Power Solutions Inc.

DISCR SMD FOR PHILIPSTEA5757

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DISCR SMD FOR PHILIPSTEA5757

Technical Specifications

Parameters and characteristics for this part

Part	Filter Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Mounting Type	Frequency	Height (Max) [Max] [z]	Height (Max) [Max] [z]	Package / Case	Package / Case	Insertion Loss	Bandwidth
Murata Power Solutions Inc. CDSCB10M7GA136-R0	Discriminator	0.177 in	0.079 in	4.5 mm	2 mm	Surface Mount	10.7 MHz	1 mm	0.039 in	2 Lead	1808
Murata Power Solutions Inc. CDSCB10M7GA105A-R0	Discriminator	0.177 in	0.079 in	4.5 mm	2 mm	Surface Mount	10.7 MHz	1 mm	0.039 in	2 Lead	1808	3 dB	220 kHz
Murata Power Solutions Inc. CDSCB10M7GA119-R0	Discriminator	0.177 in	0.079 in	4.5 mm	2 mm	Surface Mount	10.7 MHz	1 mm	0.039 in	2 Lead	1808	3 dB	500 kHz
Murata Power Solutions Inc. CDSCB10M7GA113-R0	Discriminator	0.177 in	0.079 in	4.5 mm	2 mm	Surface Mount	10.7 MHz	1 mm	0.039 in	2 Lead	1808		300 kHz
Murata Power Solutions Inc. CDSCB10M7GA120-R0	Discriminator	0.177 in	0.079 in	4.5 mm	2 mm	Surface Mount	10.7 MHz		1 mm		6-SMD No Lead

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

10.7MHz Center Discriminator Ceramic Filter 220 kHz 1808 (4520 Metric), 2 PC Pad
