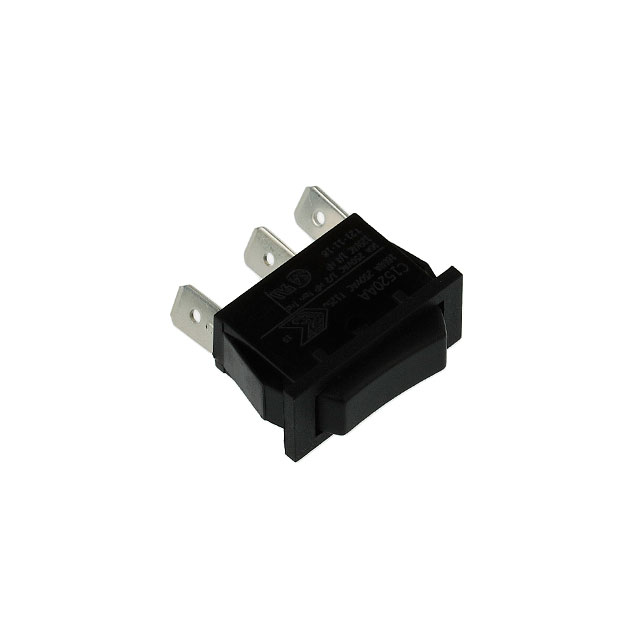

C1520AAAAA
ActiveBULGIN LIMITED
ROCKER SWITCH, ON-OFF-ON, SPDT,NON ILLUM ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
C1520AAAAA
ActiveBULGIN LIMITED
ROCKER SWITCH, ON-OFF-ON, SPDT,NON ILLUM ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C1520AAAAA |
|---|---|
| null | |
C1520AA Series
| Part | Color - Actuator/Cap | Actuator Marking | Current Rating (Amps) | Switch Function | Circuit | Mounting Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Voltage Rating - AC | Termination Style | Voltage Rating - DC | Approval Agency | Actuator Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
BULGIN LIMITED | ||||||||||||||
BULGIN LIMITED | Black | - O = | 10 A 16 A | On-Off-On | SPDT | Panel Mount Snap-In | 27.3 mm | 12.3 mm | 250 V | Quick Connect - 0.250" (6.3mm) | 24 V | CSA UL | Concave (Curved) | |
BULGIN LIMITED | Black | No Marking | 10 A 16 A | On-Off-On | SPDT | Panel Mount Snap-In | 27.3 mm | 12.3 mm | 250 V | Quick Connect - 0.250" (6.3mm) | 24 V | CSA UL | Concave (Curved) | |
BULGIN LIMITED | Black | No Marking | 10 A 16 A | On-Off-On | SPDT | Panel Mount Snap-In | 27.3 mm | 12.3 mm | 250 V | Quick Connect - 0.250" (6.3mm) | 24 V | CSA UL | Concave (Curved) | Antimicrobial |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Newark | Each | 1 | $ 2.74 | |
| 10 | $ 2.44 | |||
| 100 | $ 2.26 | |||
| 250 | $ 2.07 | |||
| 500 | $ 1.95 | |||
| 1000 | $ 1.83 | |||
| 2500 | $ 1.76 | |||
| 5000 | $ 1.44 | |||
Description
General part information
C1520AA Series
Rocker Switch
Documents
Technical documentation and resources
