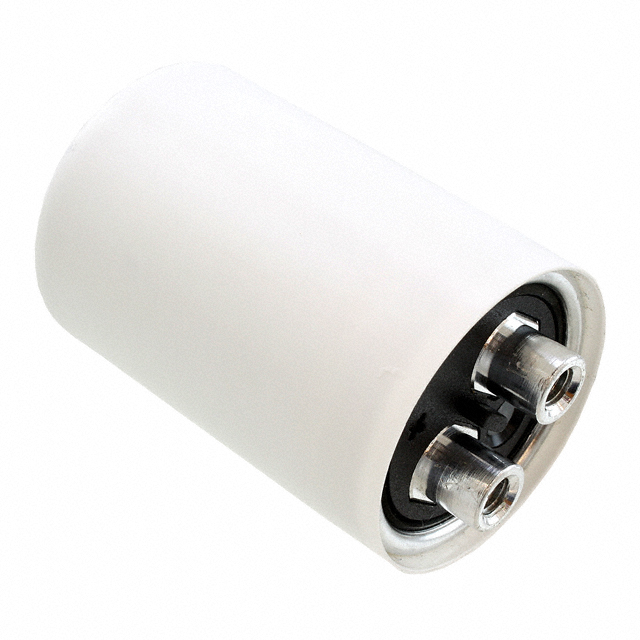

PEH169GA5100QU2

Active

KEMET

CAP ALUM 10000UF 16V SCREW CHAS

Search across all available documentation for this part.

Active

KEMET

CAP ALUM 10000UF 16V SCREW CHAS

Technical Specifications

Parameters and characteristics for this part

Specification	PEH169GA5100QU2

Applications	General Purpose
Capacitance	10000 µF
ESR (Equivalent Series Resistance)	27 mOhm
Height - Seated (Max) [Max] [z]	2.047 in
Height - Seated (Max) [Max] [z]	52 mm
Lead Spacing	13 mm
Lead Spacing	0.512 in
Lifetime @ Temp.	7000 Hrs
Mounting Type	Chassis Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can - Screw Terminals
Polarization	Polar
Size / Dimension [diameter]	1.378 in
Size / Dimension [diameter]	35 mm
Tolerance [Max]	30 %
Tolerance [Min]	-10 %
Voltage - Rated	16 V

Part	Lifetime @ Temp.	Applications	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Tolerance [Min]	Tolerance [Max]	Lead Spacing	Lead Spacing	Capacitance	Polarization	ESR (Equivalent Series Resistance)	Mounting Type	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Package / Case
KEMET PEH169GA5100QU2	7000 Hrs	General Purpose	2.047 in	52 mm	-10 %	30 %	13 mm	0.512 in	10000 µF	Polar	27 mOhm	Chassis Mount	16 V	-40 °C	105 ░C	1.378 in	35 mm	Radial Can - Screw Terminals

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

10000 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 27mOhm @ 100Hz 7000 Hrs @ 105°C
