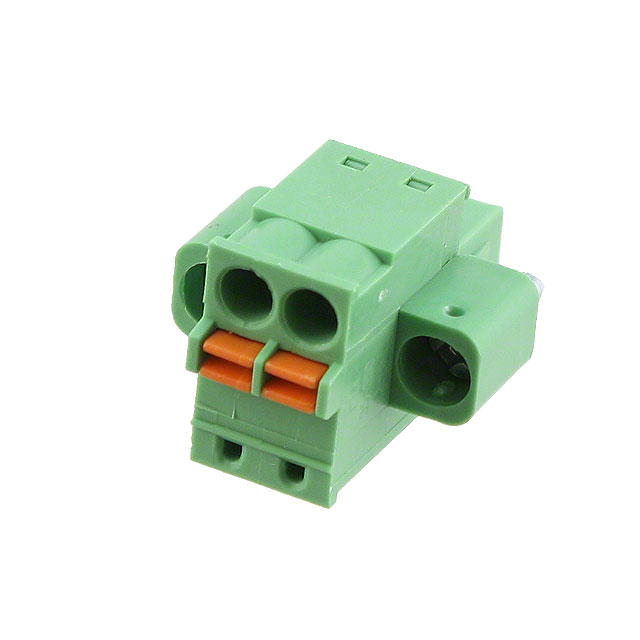

HW0210520000G

Active

Amphenol Anytek

TERM BLOCK PLUG 2POS STR 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

HW0210520000G

Active

Amphenol Anytek

TERM BLOCK PLUG 2POS STR 3.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HW0210520000G

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Current - UL	8 A
Features	Mating Flange
Housing Material	Thermoplastic Resin
Insulation Height [custom]	0.488 in
Insulation Height [custom]	12.4 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	2
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Positions Per Level	2
Termination Style	Push-In Spring, Screwless - Leg Spring
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	28 AWG
Wire Gauge or Range - AWG [Min]	16 AWG
Wire Gauge or Range - mm²	1.5 mm²
Wire Strip Length [Max]	9 mm
Wire Strip Length [Min]	8 mm

HW02 Series

Part	Type	Wire Strip Length [Min]	Wire Strip Length [Max]	Number of Positions	Mounting Type	Insulation Height	Insulation Height	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Color	Positions Per Level	Material Flammability Rating	Housing Material	Current - UL	Contact Material	Number of Levels	Pitch [x]	Pitch [x]	Voltage - UL	Wire Strip Length	Insulation Height [custom]	Insulation Height [custom]	Features	Wire Gauge or Range - mm²
Amphenol Anytek HW0250510000G	Plug Female Sockets	9 mm	10 mm	2	Free Hanging (In-Line)	0.591 in	15 mm	12 AWG	26 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Green	2	UL94 V-0	Thermoplastic	10 A	Phosphor Bronze	1	0.2 in	5.08 mm	300 V
Amphenol Anytek HW0230000000G	Plug Female Sockets			2	Free Hanging (In-Line)			16 AWG	28 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Black	2	UL94 V-0	Thermoplastic	8 A	Phosphor Bronze	1	0.15 in	3.81 mm	300 V	9 mm	0.488 in	12.4 mm
Amphenol Anytek HW0250850000G	Plug Female Sockets	9 mm	10 mm	2	Free Hanging (In-Line)	0.591 in	15 mm	12 AWG	26 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Gray	2	UL94 V-0	Thermoplastic	10 A	Phosphor Bronze	1	0.2 in	5.08 mm	300 V				Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek HW0270010000G	Plug Female Sockets	9 mm	10 mm	2	Free Hanging (In-Line)	0.591 in	15 mm	12 AWG	26 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Black	2	UL94 V-0	Thermoplastic	10 A	Phosphor Bronze	1	0.197 in	5 mm	300 V
Amphenol Anytek HW0210500000G	Plug Female Sockets	8 mm	9 mm	2	Free Hanging (In-Line)			16 AWG	28 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Green	2	UL94 V-0	Thermoplastic	8 A	Phosphor Bronze	1	0.138 in	3.5 mm	300 V		0.488 in	12.4 mm
Amphenol Anytek HW02A0520000G	Plug Female Sockets	8 mm	9 mm	2	Free Hanging (In-Line)	0.591 in	15 mm	12 AWG	26 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Green	2	UL94 V-0	Thermoplastic	10 A	Phosphor Bronze	1	0.295 in	7.5 mm	300 V				Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek HW02A0000000G	Plug Female Sockets	8 mm	9 mm	2	Free Hanging (In-Line)	0.591 in	15 mm	12 AWG	26 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Black	2	UL94 V-0	Thermoplastic	10 A	Phosphor Bronze	1	0.295 in	7.5 mm	300 V
Amphenol Anytek HW0210520000G	Plug Female Sockets	8 mm	9 mm	2	Free Hanging (In-Line)			16 AWG	28 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Green	2	UL94 V-0	Thermoplastic Resin	8 A	Copper Alloy	1	0.138 in	3.5 mm	300 V		0.488 in	12.4 mm	Mating Flange	1.5 mm²
Amphenol Anytek HW0200020000G	Plug Female Sockets			2	Free Hanging (In-Line)	0.591 in	15 mm	12 AWG	26 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Black	2	UL94 V-0	Thermoplastic	10 A	Phosphor Bronze	1	0.3 in	7.62 mm	300 V	9 mm			Mating Flange Retention Latches (Non-Wire Side)
Amphenol Anytek HW02B0500000G	Plug Female Sockets	7 mm	8 mm	2	Free Hanging (In-Line)	0.465 in	11.8 mm	20 AWG	28 AWG	Push-In Spring Screwless - Leg Spring	-40 °C	115 °C	Tin	Green	2	UL94 V-0	Thermoplastic	4 A	Phosphor Bronze	1	0.098 in	2.5 mm	150 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	2000	$ 0.38

Description

General part information

HW02 Series

2 Position Terminal Block Plug, Female Sockets 0.138" (3.50mm) 180° Free Hanging (In-Line)
