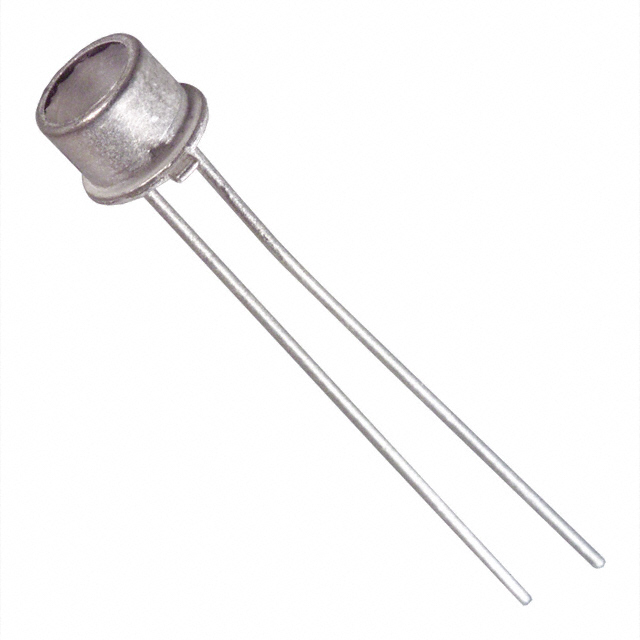

1N6265
ObsoleteON Semiconductor
EMITTER IR 940NM 100MA TO-46
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N6265
ObsoleteON Semiconductor
EMITTER IR 940NM 100MA TO-46
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N6265 |
|---|---|
| Current - DC Forward (If) (Max) [Max] | 100 mA |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 °C |
| Orientation | Top View |
| Package / Case | TO-46-2 Metal Can |
| Type | Infrared (IR) |
| Viewing Angle | 80 ° |
| Voltage - Forward (Vf) (Typ) | 1.7 V |
| Wavelength | 940 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1N626 Series
Infrared (IR) Emitter 940nm 1.7V 100mA 80° TO-46-2 Metal Can
