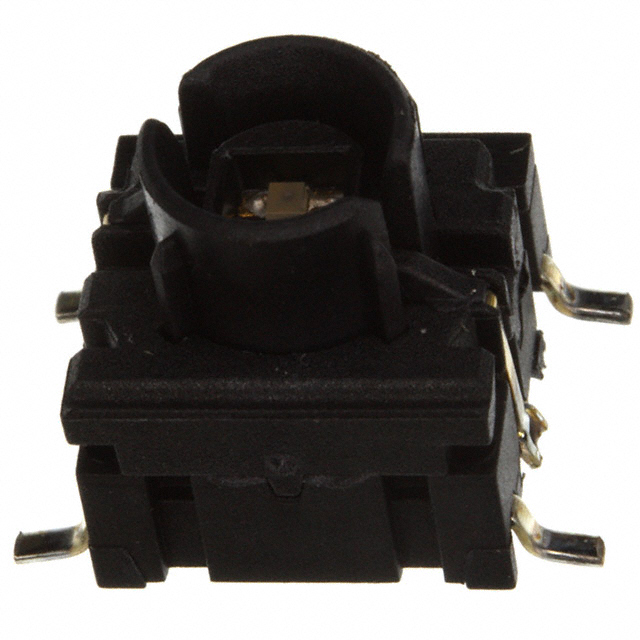

4FSH982

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4FSH982

Active

MEC Switches

SWITCH TACTILE SPST-NO 0.05A 24V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4FSH982

Actuator Height off PCB, Vertical	10.4 mm
Actuator Material	Polyphenylene Sulfide (PPS)
Actuator Orientation	Top Actuated
Actuator Type	Plunger for Cap
Circuit	SPST-NO
Contact Rating @ Voltage	0.05 A, 24 VDC
Features	Sealed - Flux Protection
Illumination	Illuminated
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	2 VDC
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	10000000 Cycles
Mounting Type	Surface Mount
Operating Force	300 gf
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Outline [x]	10.1 mm
Outline [y]	10.1 mm
Switch Function	Off-Mom
Switch Travel	1 mm
Termination Style	Gull Wing

4FSH9 Series

Part	Features	Mechanical Life	Actuator Material	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Circuit	Illumination Voltage (Nominal)	Contact Rating @ Voltage	Termination Style	Switch Function	Outline [x]	Outline [y]	Illumination	Actuator Type	Actuator Orientation	Illumination Type, Color	Operating Force	Ingress Protection	Switch Travel	Actuator Height off PCB, Vertical
MEC Switches 4FSH922	Sealed - Flux Protection	10000000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	-30 ░C	85 °C	SPST-NO	2.2 VDC	0.05 A 24 VDC	Gull Wing	Off-Mom	10.1 mm	10.1 mm	Illuminated	Plunger for Cap	Top Actuated	Green LED	300 gf	IP67 - Dust Tight Waterproof	1 mm	10.4 mm
MEC Switches 4FSH982	Sealed - Flux Protection	10000000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	-30 ░C	85 °C	SPST-NO	2 VDC	0.05 A 24 VDC	Gull Wing	Off-Mom	10.1 mm	10.1 mm	Illuminated	Plunger for Cap	Top Actuated	LED Red	300 gf	IP67 - Dust Tight Waterproof	1 mm	10.4 mm
MEC Switches 4FSH961	Sealed - Flux Protection	10000000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	-30 ░C	85 °C	SPST-NO	3.05 VDC	0.05 A 24 VDC	Gull Wing	Off-Mom	10.1 mm	10.1 mm	Illuminated	Plunger for Cap	Top Actuated	LED White	300 gf	IP67 - Dust Tight Waterproof	1 mm	10.4 mm
MEC Switches 4FSH98222	Sealed - Flux Protection	10000000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	-30 ░C	85 °C	SPST-NO	2 VDC 2.2 VDC	0.05 A 24 VDC	Gull Wing	Off-Mom	10.1 mm	10.1 mm	Illuminated	Plunger for Cap	Top Actuated	Green/Red LED	300 gf	IP67 - Dust Tight Waterproof	1 mm	10.4 mm
MEC Switches 4FSH901	Sealed - Flux Protection	10000000 Cycles	Polyphenylene Sulfide (PPS)	Surface Mount	-30 ░C	85 °C	SPST-NO		0.05 A 24 VDC	Gull Wing	Off-Mom	10.1 mm	10.1 mm	Illuminated	Plunger for Cap	Top Actuated	Blue LED	300 gf	IP67 - Dust Tight Waterproof	1 mm	10.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.62
		10	$ 6.04
		50	$ 5.12
		100	$ 4.75
		250	$ 4.32
		500	$ 4.00
		1000	$ 3.71
		2500	$ 3.56

Description

General part information

4FSH9 Series

Tactile Switch SPST-NO Top Actuated Surface Mount
