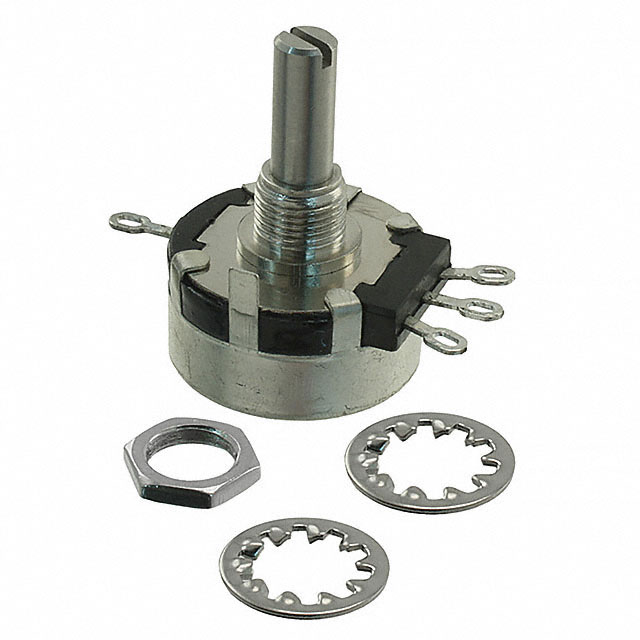

P271-DS21BR10K

Active

TT Electronics/BI

POT 10K OHM 2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P271-DS21BR10K

Active

TT Electronics/BI

POT 10K OHM 2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	P271-DS21BR10K

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Actuator Length [z]	22.23 mm
Actuator Length [z]	0.875 in
Actuator Type	Slotted
Adjustment Type	User Defined
Built in Switch	False
Bushing Thread	3/8-32
Number of Gangs	1
Number of Turns	1
Power (Watts)	2 W
Resistance (Ohms)	10k
Resistive Material	Conductive Plastic
Rotation	312 °
Size - Body [diameter]	26.67 mm
Size - Body [diameter]	1.05 Dia
Taper	Linear
Termination Style	Solder Lug
Tolerance	10 %

P271 Series

Part	Bushing Thread	Features	Tolerance	Resistance (Ohms)	Size - Body [diameter]	Size - Body [diameter]	Termination Style	Actuator Type	Number of Gangs	Actuator Diameter	Actuator Diameter [diameter]	Resistive Material	Rotation	Adjustment Type	Number of Turns	Actuator Length [z]	Actuator Length [z]	Power (Watts)	Taper	Resistance (Ohms)	Actuator Length [x]	Actuator Length [x]
TT Electronics/BI P271-SP22R10K	3/8-32	Sealed	10 %	10k	26.67 mm	1.05 Dia	Solder Lug	Round	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1	22.23 mm	0.875 in	2 W	Linear
TT Electronics/BI P271-DS22R2K5	3/8-32		10 %		26.67 mm	1.05 Dia	Solder Lug	Slotted	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1	22.23 mm	0.875 in	2 W	Linear	2.5 kOhms
TT Electronics/BI P271-DP41R10K	3/8-32		10 %	10k	26.67 mm	1.05 Dia	Solder Lug	Round	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1	50.8 mm	2 in	2 W	Linear
TT Electronics/BI P271-DS21BR10K	3/8-32		10 %	10k	26.67 mm	1.05 Dia	Solder Lug	Slotted	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1	22.23 mm	0.875 in	2 W	Linear
TT Electronics/BI P271-D32R1MEG	3/8-32		10 %	1M	26.67 mm	1.05 Dia	Solder Lug	Slotted	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1			2 W	Linear		1 in	25.4 mm
TT Electronics/BI P271-DS32R1MEG	3/8-32		10 %	1M	26.67 mm	1.05 Dia	Solder Lug	Slotted	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1			2 W	Linear		1 in	25.4 mm
TT Electronics/BI P271-DS11R20K	3/8-32		10 %		26.67 mm	1.05 Dia	Solder Lug	Slotted	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1			2 W	Linear	20 kOhms	0.625 in	15.88 mm
TT Electronics/BI P271-DS13R10K	3/8-32		10 %	10k	26.67 mm	1.05 Dia	Solder Lug	Slotted	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1			2 W	Linear		0.625 in	15.88 mm
TT Electronics/BI P271-SF32R10K	3/8-32	Sealed	10 %	10k	26.67 mm	1.05 Dia	Solder Lug	Flatted	1	6.35 mm	0.25 in	Conductive Plastic	312 °	User Defined	1			2 W	Linear		1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 19.12
		10	$ 17.65
		25	$ 16.91
		40	$ 14.71
		80	$ 13.23
		280	$ 11.40
		560	$ 11.03

Description

General part information

P271 Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 2W Solder Lug
