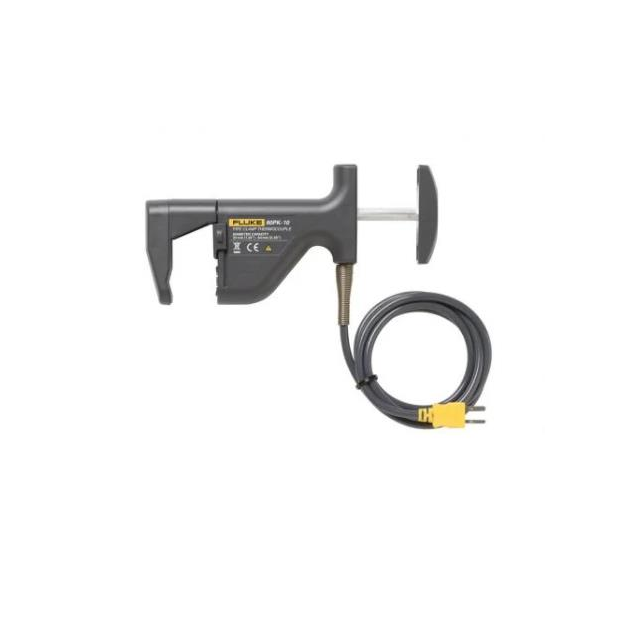

80PK-10

Active

Fluke Electronics

TYPE-K PIPE CLAMP THERMOCOUPLE P

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Accessories Catalog (2017)

80PK-10

Active

Fluke Electronics

TYPE-K PIPE CLAMP THERMOCOUPLE P

Deep-Dive with AI

DocumentsDatasheet Accessories Catalog (2017)

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	80PK-10

Cable Insulation	Poly-Vinyl Chloride (PVC)
Cable Length	100 cm
Cable Length	39.37 in
Plug Color	Yellow
Plug Type	Sub-Mini (Thermocouple Plug)
Probe Length [Max]	63.5 mm
Probe Length [Max]	2.5 in
Probe Length [Min]	31.75 mm
Probe Length [Min]	1.25 in
Probe Material	Polybutylene Terephthalate (PBT)
Probe Temperature Range [Max]	149 °C
Probe Temperature Range [Max]	300 °F
Probe Temperature Range [Min]	-20 °F
Probe Temperature Range [Min]	-29 °C
Tip Type	Contact, Clamp
Type	K-Type Thermocouple
Usage	HVAC

80PK Series

Part	Cable Insulation	Probe Temperature Range [Min]	Probe Temperature Range [Max]	Probe Temperature Range [Max]	Probe Temperature Range [Min]	Cable Length	Cable Length	Probe Length [Min]	Probe Length [Min]	Probe Length [Max]	Probe Length [Max]	Plug Color	Type	Usage	Probe Material	Tip Type	Plug Type	Probe Length	Probe Length	Probe Length [Max]	Probe Length [Min]	Specifications	For Use With/Related Products	Accessory Type
Fluke Electronics 80PK-18	Poly-Vinyl Chloride (PVC)	-20 °F	149 °C	300 °F	-29 °C	100 cm	39.37 in	0.25 "	6.35 mm	2.5 "	63.5 mm	Yellow	K-Type Thermocouple	HVAC	Polybutylene Terephthalate (PBT)	Clamp Contact	Sub-Mini (Thermocouple Plug)
Fluke Electronics 80PK-22	Poly-Vinyl Chloride (PVC)	-40 °F	1090 °C	1090 °C	-40 °C	100 cm	39.37 in					Yellow	K-Type Thermocouple	HVAC	Inconel	Immersion / Penetration Rounded	Sub-Mini (Thermocouple Plug)	212.73 mm	8.375 in
Fluke Electronics 80PK-10	Poly-Vinyl Chloride (PVC)	-20 °F	149 °C	300 °F	-29 °C	100 cm	39.37 in	31.75 mm			63.5 mm	Yellow	K-Type Thermocouple	HVAC	Polybutylene Terephthalate (PBT)	Clamp Contact	Sub-Mini (Thermocouple Plug)			2.5 in	1.25 in
Fluke Electronics 80PK-11	Plastic	-22 °F	105 °C	221 °F	-30 °C	100 cm	39.37 in					Yellow	K-Type Thermocouple	HVAC		Contact Cuff	Sub-Mini (Thermocouple Plug)
Fluke Electronics 80PK-26	Poly-Vinyl Chloride (PVC)	-40 °F	816 °C	1500 °F	-40 °C	100 cm	39.37 in					Yellow	K-Type Thermocouple	HVAC	Stainless Steel	Immersion / Penetration Tapered	Sub-Mini (Thermocouple Plug)	215.9 mm	8.5 in
Fluke Electronics 80PK-8	Poly-Vinyl Chloride (PVC)	-20 °F	149 °C	300 °F	-29 °C	100 cm	39.37 in					Yellow	K-Type Thermocouple	HVAC	Polybutylene Terephthalate (PBT)	Clamp Contact	Sub-Mini (Thermocouple Plug)
Fluke Electronics 80PK-27	Poly-Vinyl Chloride (PVC)					100 cm	39.37 in					Yellow	K-Type Thermocouple	HVAC	Stainless Steel	Contact Ribbon	Sub-Mini (Thermocouple Plug)	203.2 mm	8 in
Fluke Electronics 80PK-EXT													Lead Probe Test Clip									Extending and Repairing Wire	Thermocouple Wire K-Type	Extension Wire Kit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 356.99

Description

General part information

80PK Series

39.370" (1000.00mm) K-Type Thermocouple Contact, Clamp -20 ~ 300°F (-29 ~ 149°C)

Documents

Technical documentation and resources
