A09SR09SR30K102B

Active

JST Sales America Inc.

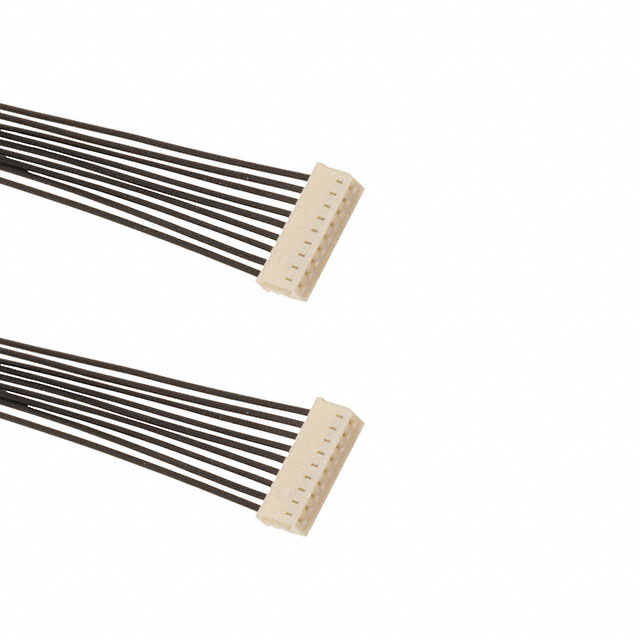

JUMPER 09SR-3S - 09SR-3S 4"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 09SR-3S - 09SR-3S 4"

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Pitch - Connector	Pitch - Connector	Number of Rows	Cable Termination	Contact Finish	Number of Positions	Length [x]	Length [x]	Length [x]	Length	Length	Length	Length
JST Sales America Inc. A09SR09SR30K102B	Socket to Socket	0.039 "	1 mm	1	IDC	Tin	9	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A09SR09SR30K305A	Socket to Socket Reversed	0.039 "	1 mm	1	IDC	Tin	9				1 ft	304.8 mm
JST Sales America Inc. A09SR09SR30K203A	Socket to Socket Reversed	0.039 "	1 mm	1	IDC	Tin	9				0.667 ft	203.2 mm	8 in
JST Sales America Inc. A09SR09SR30K51B	Socket to Socket	0.039 "	1 mm	1	IDC	Tin	9				0.167 '	50.8 mm	2 "
JST Sales America Inc. A09SR09SR30K152A	Socket to Socket Reversed	0.039 "	1 mm	1	IDC	Tin	9					152.4 mm	6 "	0.5 '
JST Sales America Inc. A09SR09SR30K102A	Socket to Socket Reversed	0.039 "	1 mm	1	IDC	Tin	9	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A09SR09SR30K51A	Socket to Socket Reversed	0.039 "	1 mm	1	IDC	Tin	9				0.167 '	50.8 mm	2 "
JST Sales America Inc. A09SR09SR30K254A	Socket to Socket Reversed	0.039 "	1 mm	1	IDC	Tin	9				0.833 ft	254 mm	10 in
JST Sales America Inc. A09SR09SR30K203B	Socket to Socket	0.039 "	1 mm	1	IDC	Tin	9				0.667 ft	203.2 mm	8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

9 Position Cable Assembly Rectangular Socket to Socket 0.333' (101.60mm, 4.00")

Technical documentation and resources
