45-2D36.1820.000

Active

EAO

CONFIG SWITCH BODY E-STOP ILLUM

Search across all available documentation for this part.

Active

EAO

CONFIG SWITCH BODY E-STOP ILLUM

Technical Specifications

Parameters and characteristics for this part

Specification	45-2D36.1820.000

(Select First, Then Apply Filters) Compatible Series	45, EAO
Actuator Type	E-Stop, Round
Panel Cutout Dimensions	22.3 mm
Requires	Illumination Source, Contact Block(s)
Type	Maintained

Part	Requires	(Select First, Then Apply Filters) Compatible Series	Type	Panel Cutout Dimensions	Actuator Type	Illumination
EAO 45-2D36.1820.000	Contact Block(s) Illumination Source	45 EAO	Maintained	22.3 mm	E-Stop Round
EAO 45-2D36.2920.000	Contact Block(s)	45 EAO	Maintained	22.3 mm	E-Stop Round	Non-Illuminated
EAO 45-2D36.2A20.000	Contact Block(s)	45 EAO	Maintained	22.3 mm	E-Stop Round	Non-Illuminated
EAO 45-2D36.2820.000	Contact Block(s) Illumination Source	45 EAO	Maintained	22.3 mm	E-Stop Round

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

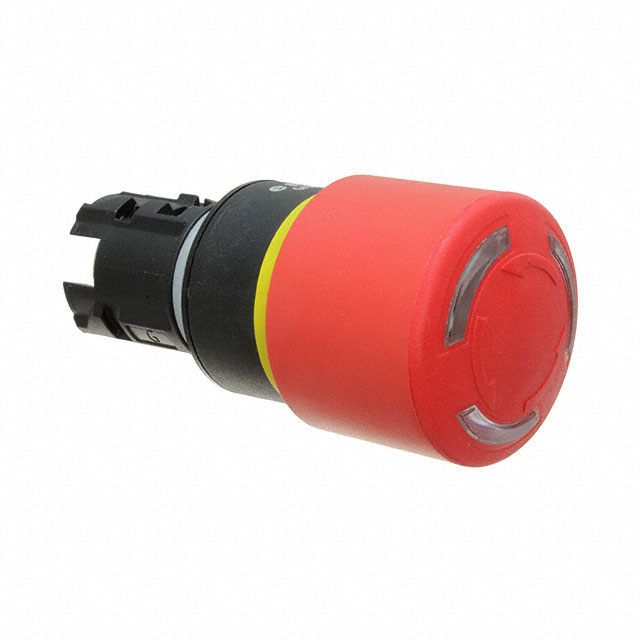

Configurable Switch Body E-Stop, Round Illuminated - Red
