JBXER1G02FCSDSR

Active

Souriau-Sunbank by Eaton

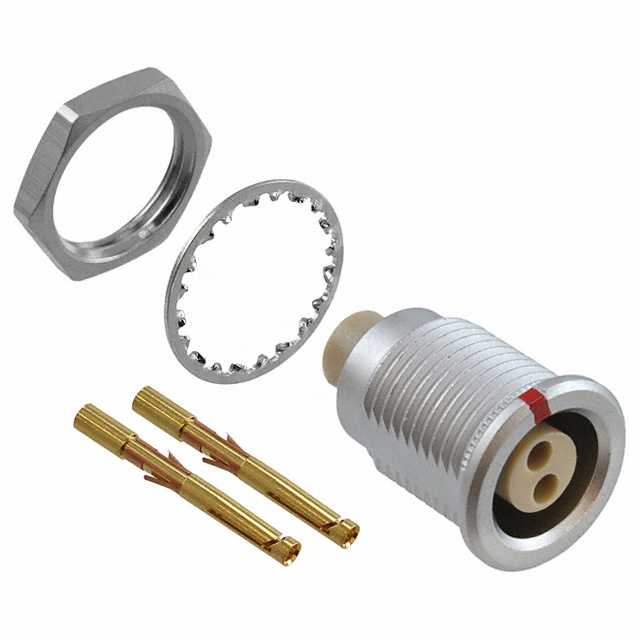

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

JBXER1G02FCSDSR

Active

Souriau-Sunbank by Eaton

CONN RCPT FMALE 2POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	JBXER1G02FCSDSR

Applications	Instrumentation, Medical, Telecommunications, Industrial
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.5 µm
Contact Finish Thickness - Mating	19.7 µin
Current Rating (Amps)	15 A
Fastening Type	Push-Pull
Ingress Protection	IP40
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	1
Shielding	Shielded
Termination	Crimp
Voltage Rating	760 V

JBXER1G Series

Part	Mounting Type	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Voltage Rating	Mounting Feature	Shell Finish	Material Flammability Rating	Termination	Connector Type	Shell Size - Insert	Shell Material	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Color	Orientation	Current Rating (Amps)	Ingress Protection	Applications	Primary Material	Shielding	Number of Positions
Souriau-Sunbank by Eaton JBXER1G05FPSDSR	Panel Mount Through Hole	Push-Pull	125 °C	-40 °C	Gold	660 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0	Solder	Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	9 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded
Souriau-Sunbank by Eaton JBXER1G03FCSDSR		Push-Pull	125 °C	-40 °C	Gold	600 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0	Crimp	Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	12 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded
Souriau-Sunbank by Eaton JBXER1G05FSSDSR		Push-Pull	125 °C	-40 °C	Gold	660 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0		Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	9 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded
Souriau-Sunbank by Eaton JBXER1G04FPSDSR	Panel Mount Through Hole	Push-Pull	125 °C	-40 °C	Gold	900 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0	Solder	Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	10 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded	4
Souriau-Sunbank by Eaton JBXER1G03FSSDSR		Push-Pull	125 °C	-40 °C	Gold	600 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0		Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	12 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded
Souriau-Sunbank by Eaton JBXER1G02FCSDSR		Push-Pull	125 °C	-40 °C	Gold	760 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0	Crimp	Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	15 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded	2
Souriau-Sunbank by Eaton JBXER1G03FSNDSR		Push-Pull	125 °C	-40 °C	Gold	600 V	Bulkhead - Rear Side Nut	Black Chrome over Nickel	UL94 V-0		Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Black	G	12 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded
Souriau-Sunbank by Eaton JBXER1G02MCSDSR		Push-Pull	125 °C	-40 °C	Gold	760 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0	Crimp	Male Pins Receptacle	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	15 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded	2
Souriau-Sunbank by Eaton JBXER1G04FSNDSR		Push-Pull	125 °C	-40 °C	Gold	900 V	Bulkhead - Rear Side Nut	Black Chrome over Nickel	UL94 V-0		Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Black	G	10 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded	4
Souriau-Sunbank by Eaton JBXER1G07FPSDSR	Panel Mount Through Hole	Push-Pull	125 °C	-40 °C	Gold	660 V	Bulkhead - Rear Side Nut	Chrome over Nickel	UL94 V-0	Solder	Receptacle Female Sockets	1	Brass	Polyetheretherketone (PEEK)	0.5 µm	19.7 µin	Silver	G	7 A	IP40	Industrial Instrumentation Medical Telecommunications	Metal	Shielded	7

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.53
		10	$ 24.98
		25	$ 23.91
		50	$ 23.13
		100	$ 22.36
		250	$ 21.13

Description

General part information

JBXER1G Series

2 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources
